KleinDIA®

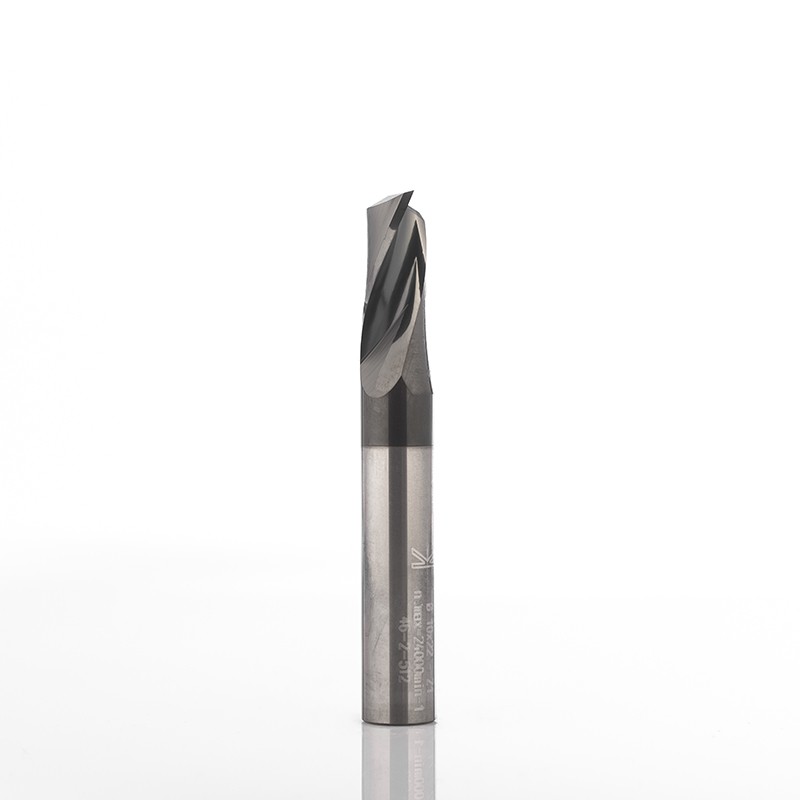

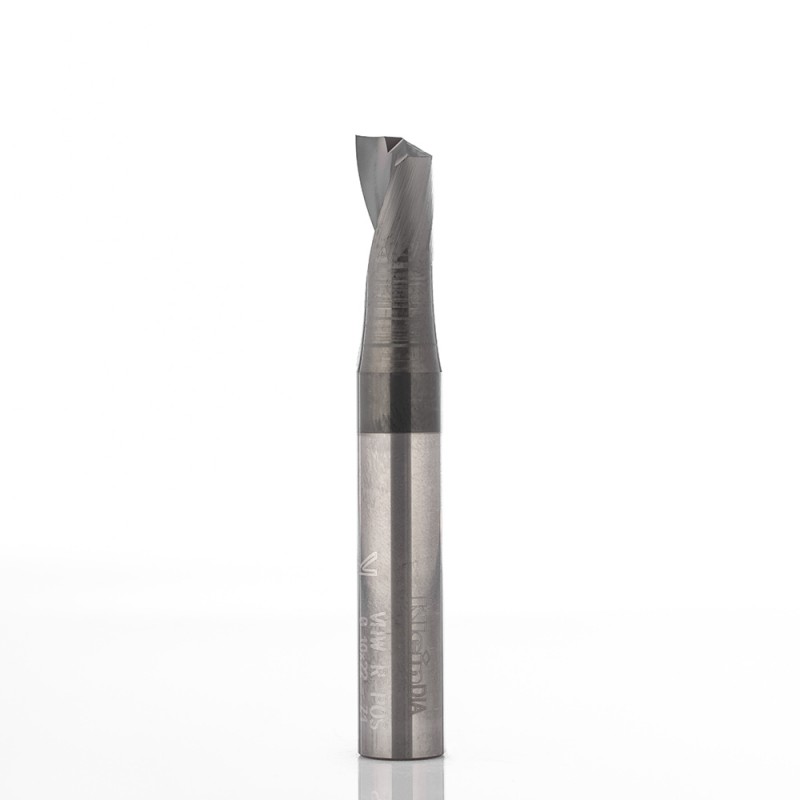

solid carbide spiral bits up cut z1-z2 kleindia®
U111.KD - U112.KD

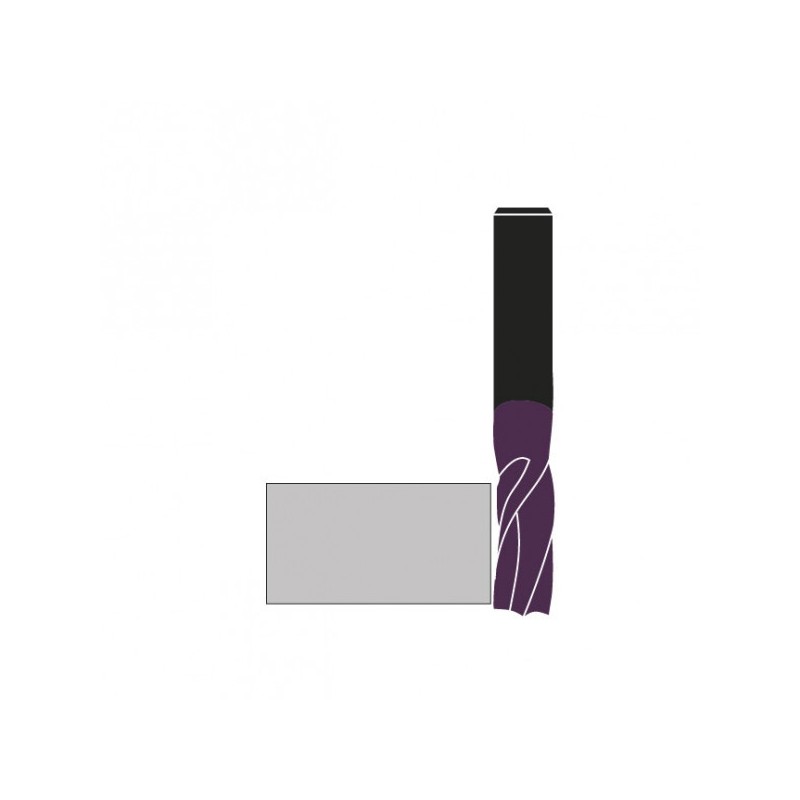

  • Right-hand rotation with "UP CUT SPIRAL".
  • Polished and coated cutting edge for improved chip evacuation.
  • Mirror finish
  • Use on CNC and high speed machines.
  • For working aluminium, plastic, PVC, fiberglass, acrylic and phenols materials.
  • Item U111 also known as "O" flute spiral bits

Coating for excellent performance

A surface treatment developed for large-scale production

KleinDIA is a DLC (Diamond-like Carbon) anti-friction coating which allows to solve problems of tool abrasion, chip evacuation and chemical attack.
A layer of apprx. 1 micron is laid on the tool surface at low temperature, thus not altering the properties of the router bit or knife.
Its high hardness is granted by both Sp2 (Graphite) and Sp3 (Diamond) carbon hybridisation.
Our several tests confirmed remarkable results on both panel working, plywood, particleboard and solid wood processing. Working plastic and aluminium without coolant is also possible thanks to a very low friction coefficient.

Technical features:
-    High hardness Hv0,025: 2500-3100
-    Higher wear resistance (longer working time)
-    Low frictional coefficient (lowered working temperature)
-    Very low sticking coefficient (Better chips evacuation)
-    Thickness: apprx. 1 micron
-    Colour: bright black

KleinDIA is the most advantageous coating, ensuring:
-    Production increase
-    Better finishing
-    Less maintenance



DOWNLOAD THE BROCHURE:

icona Aluminium

Aluminium

icona Plastic, plexiglass, PVC

Plastic, plexiglass, PVC

icona Fiberglass

Fiberglass

icona Paper coated materials

Paper coated materials

icona CNC machining centres

CNC machining centres

S (shank)
D (diameter)
B (cutting length)
L (total length)
Z
Rotation
View Catalog Download PDF

If you are interested in this product:

CONTACT US
Item S D B L Z Rotation Price Quantity
U111.030.RKD
Details
6 3 12 60 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.040.RKD
Details
6 4 12 60 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.050.RKD
Details
6 5 16 60 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.060.RKD
Details
6 6 16 60 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.061.RKD
Details
6 6 35 80 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.080.RKD
Details
8 8 18 60 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.081.RKD
Details
8 8 35 80 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.100.RKD
Details
10 10 22 70 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.120.RKD
Details
12 12 24 70 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.040.RKD
Details
6 4 10 60 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.050.RKD
Details
6 5 12 60 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.060.RKD
Details
6 6 15 60 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.080.RKD
Details
8 8 20 60 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.100.RKD
Details
10 10 22 70 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.120.RKD
Details
12 12 25 80 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.140.RKD
Details
14 14 25 80 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.160.RKD
Details
16 16 25 80 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.032.RKD
Details
1/4” 1/8” 1/2” 2” 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.048.RKD
Details
1/4” 3/16” 5/8” 2” 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.127.RKD
Details
1/2” 1/2” 1-1/2” 3-1/2” 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.095.RKD
Details
3/8” 3/8” 1” 3” 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.095.RKD
Details
3/8” 3/8” 3/4” 3” 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.064.RKD
Details
1/4” 1/4” 3/4” 2” 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U112.048.RKD
Details
1/4” 3/16” 1/2” 2” 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.127.RKD
Details
1/2” 1/2” 1-1/4” 3” 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.064.RKD
Details
1/4” 1/4” 3/4” 2” 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
U111.101.RKD
Details
10 10 25 90 1 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
