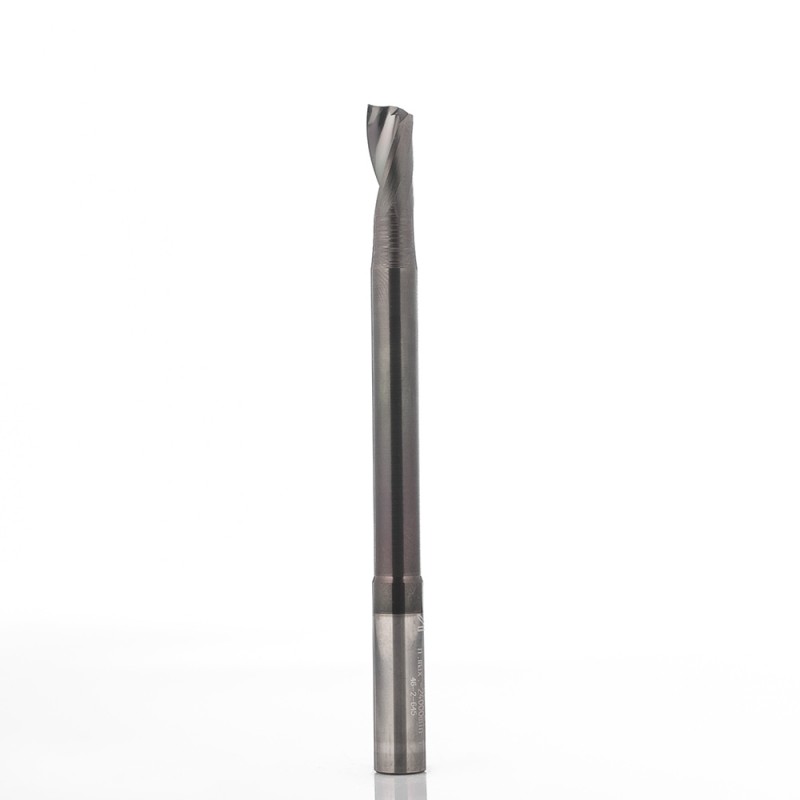

solid carbide spiral bits up cut z1 - z2 long type, kleindia® coated
U121.KD - U122.KD

• Right-hand rotation with "UP CUT SPIRAL"
• Longer tool life and greater cutting quality
• Polished cutting edge for improved chip evacuation.
• Mirror finish
• Spiral ‘O’ flute sharpening (U121)
• Long version for deep machining operations
• Use on CNC and high speed machines
• Use with coolant /lubricant is recommended
• For working: • aluminium  • fiberglass  • plastic  • phenolic  • acrylic • PVC

Coating for excellent performance

A surface treatment developed for large-scale production

KleinDIA is a DLC (Diamond-like Carbon) anti-friction coating which allows to solve problems of tool abrasion, chip evacuation and chemical attack.
A layer of apprx. 1 micron is laid on the tool surface at low temperature, thus not altering the properties of the router bit or knife.
Its high hardness is granted by both Sp2 (Graphite) and Sp3 (Diamond) carbon hybridisation.
Our several tests confirmed remarkable results on both panel working, plywood, particleboard and solid wood processing. Working plastic and aluminium without coolant is also possible thanks to a very low friction coefficient.

Technical features:
-    High hardness Hv0,025: 2500-3100
-    Higher wear resistance (longer working time)
-    Low frictional coefficient (lowered working temperature)
-    Very low sticking coefficient (Better chips evacuation)
-    Thickness: apprx. 1 micron
-    Colour: bright black

KleinDIA is the most advantageous coating, ensuring:
-    Production increase
-    Better finishing
-    Less maintenance
