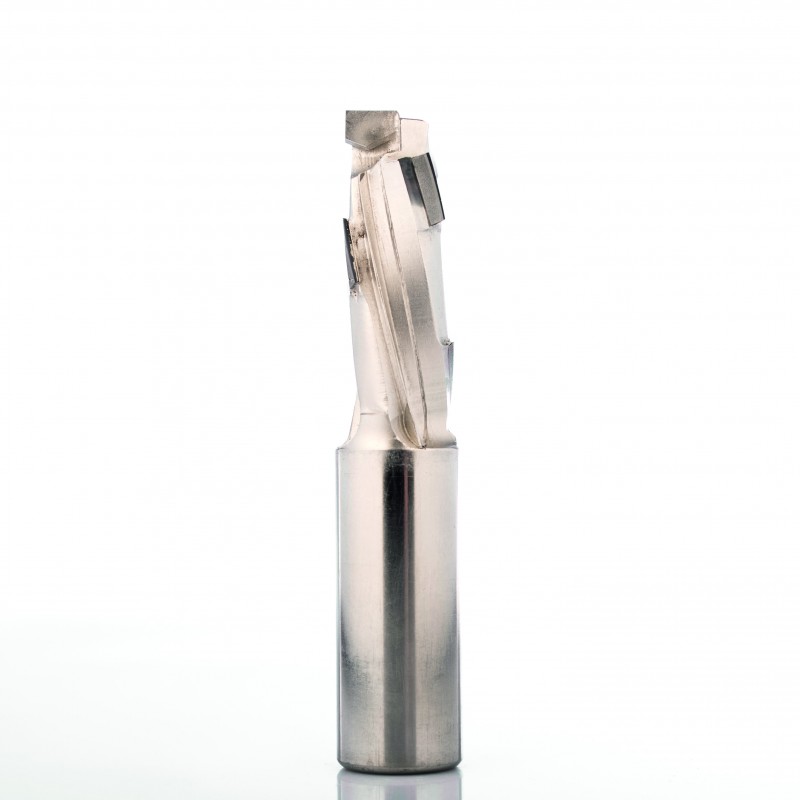

dp router bits - h-1,5

dp router bits - h-1,5
X522

PCD tip height 1,5 mm (not to regrind)
HW punging tip
Recommended for grooving and routing solid hardwood, veneered and laminated MDF
To be used on CNC router machines

POLYCRISTALLINE DIAMOND TOOLS

Selling out

MDF / HDF

Hardwood

Laminate / double side laminate

CNC machining centres

S (shank)

D (diameter)

B (cutting length)

L (total length)

Z

Rotation

Tips

If you are interested in this product:

Item	S	D	B	L	Z	Rotation	Tips	Price	Quantity
X522.180.R Details	20X50	18	25	85	3+3	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X522.181.R Details	20X50	18	36	96	3+3	RH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X522.182.R Details	20X50	18	45	105	3+3	RH	5+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X522.200.R Details	20X50	20	25	85	3+3	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X522.201.R Details	20X50	20	36	96	3+3	RH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X522.202.R Details	20X50	20	45	105	3+3	RH	5+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X522.203.R Details	20X50	20	53	113	3+3	RH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
