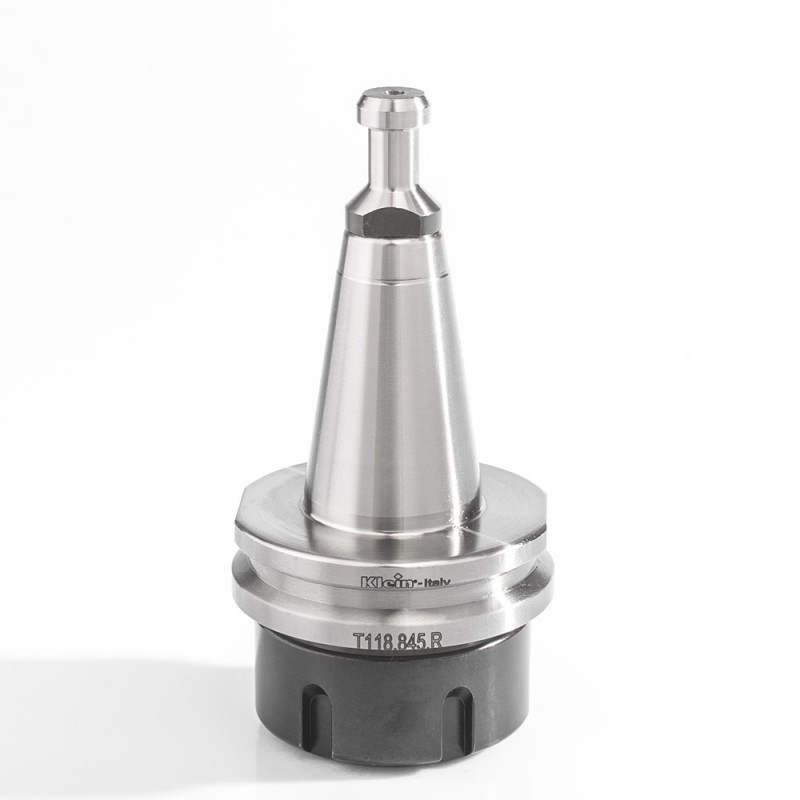

collet chucks iso 30 with flange ø58
T118


  • Tool holders supplied with nut (without collet) and retaining pawl
  • Balanced to 24000 RPM
  • Retaining pawl T118.791.R for electrospindles ELTE
  • Retaining pawl T118.793.Rfor: ESSETEAM (solid flange)
  • Threaded nut DIN 6499
  • For the spring collets see our item T119 and T123; for the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).
  • To be used on our adjustable demount device Klein® T139
  • The "A" measure will be determined with clamped router bits' shanks by using both our spring collets DIN6499 and DIN6388. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
icona CNC machining centres

CNC machining centres

icona torque wrenches for “standard” nuts

torque wrenches for “standard” nuts

icona wrenches for collet nut standard

wrenches for collet nut standard

icona collet nuts

collet nuts

icona collet nuts with ball bearing

collet nuts with ball bearing

icona retaining pawls for concentric chuck

retaining pawls for concentric chuck - T118.791.R

usable only on: T118.828.R - T118.829.R - T118.820.R - T118.820.L - T118.822.R - T118.824.R - T118.824.L - T118.826.R - T118.845.R - T118.846.R - T118.847.R - T118.848.R - T118.821.RAI - T118.823.RAI - T118.825.RAI - T118.827.RAI

icona retaining pawls for concentric chuck

retaining pawls for concentric chuck - T118.793.R

usable only on: T118.861.R - T118.862.R - T118.864.R - T118.866.R

icona ADJUSTABLE DEMOUNT DEVICES

ADJUSTABLE DEMOUNT DEVICES - T139.158.N

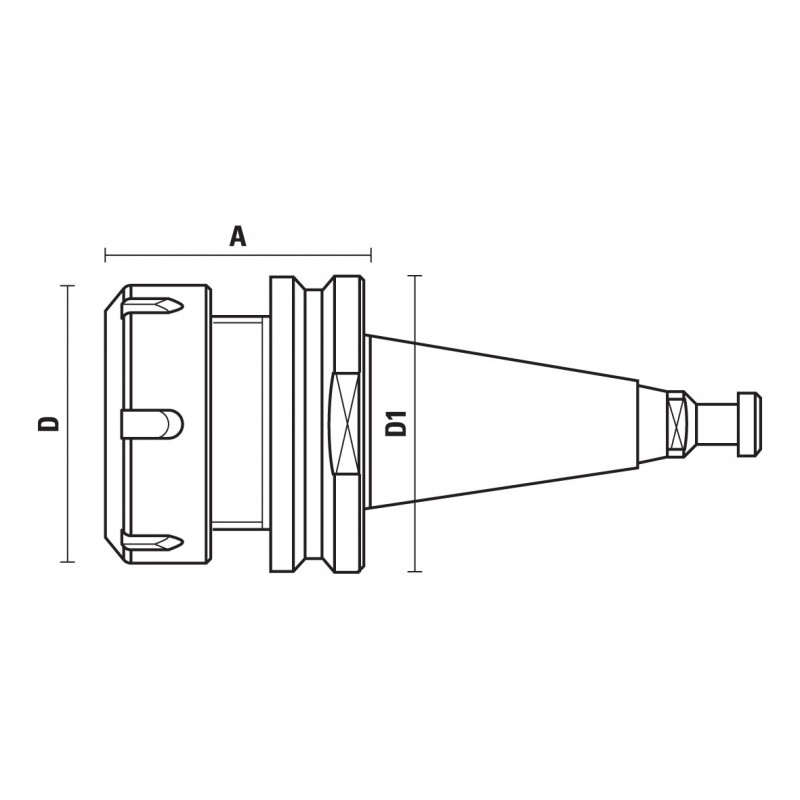

A
D (diameter)
D1
Spring collets
Clamping nut
Rotation
View Catalog Download PDF

If you are interested in this product:

CONTACT US
Item A D D1 Spring collets Clamping nut Rotation Price Quantity
T118.846.R
Details
50 50 58 Ø 2÷20 (Art. T119/ER32) Z091.101.R with ball bearing RH/LH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.848.R
Details
56 63 58 Ø 2÷30 (Art. T123/ER40) Z091.102.R with ball bearing RH/LH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.845.R
Details
50 50 58 Ø 2÷20 (Art. T119/ER32) Z091.001.R RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.847.R
Details
56 63 58 Ø 2÷30 (Art. T123/ER40) Z091.002.R RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.862.R
Details
50 50 58 Ø 2÷20 (Art T119/ER32) Z091.101.R with ball bearing RH/LH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.866.R
Details
56 63 58 Ø 2÷30 (Art. T123.ER40) Z091.102.R with ball bearing RH/LH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.861.R
Details
50 50 58 Ø 2÷20 (Art T119/ER32) Z091.001.R RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.864.R
Details
56 63 58 Ø 2÷30 (Art. T123.ER40) Z091.002.R RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
