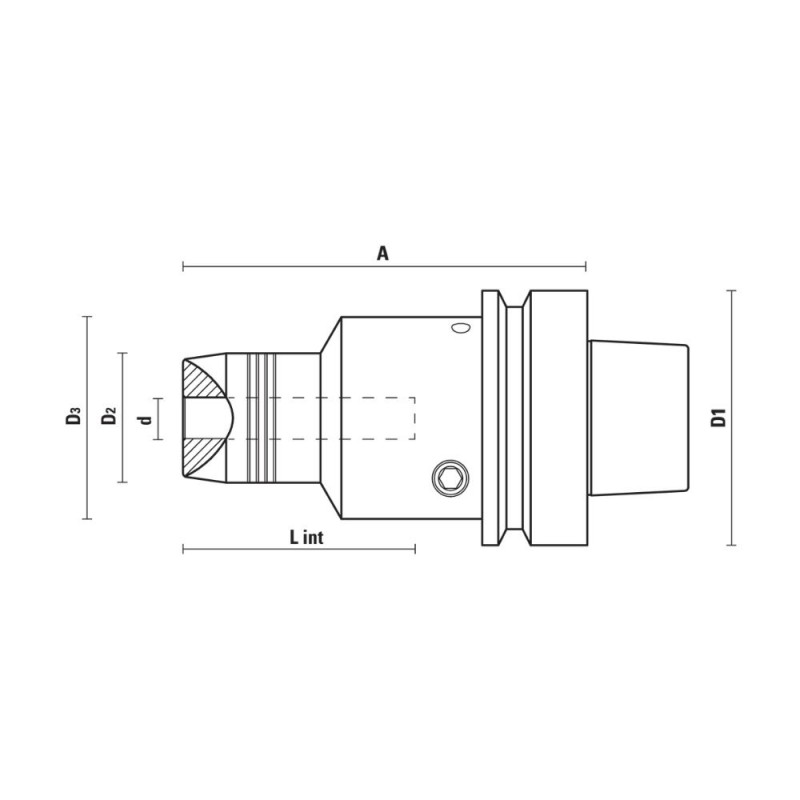

HSK63F Hydro Chuck
T518

IMPORTANT INFORMATION

• Concentricity ≤ 0.005 mm
• Hexagonal "T" key included
• Precision balanced at G2.5 to 24.000 RPM
• Tightening torque power of 5,5 N/m
• The hollow taper shank is produced according to DIN69893
• For right and left hand rotation
• Reduction Sleeves Art. T521 - To be used on our adjustable demount device Klein®
  Art. T139.163.N

• Brochure Download
• Download operating manual

MAIN ADVANTAGES OF HYDRAULIC CHUCK

• Reduced set up times thanks to an easy, quick and simple tool change
• More clamping force compared to collet chucks thus higher precision and better finishing of workpiece
• Less vibration during routing operation
• Very simple clamping operation
• Up to 2.500/3.000 tool changes without losing accuracy
• Longer tool lifetime
• Thanks to the reduction sleeves, a variety of shank sizes can be clamped
• Balanced at G 2.5 to 24.000 RPM
