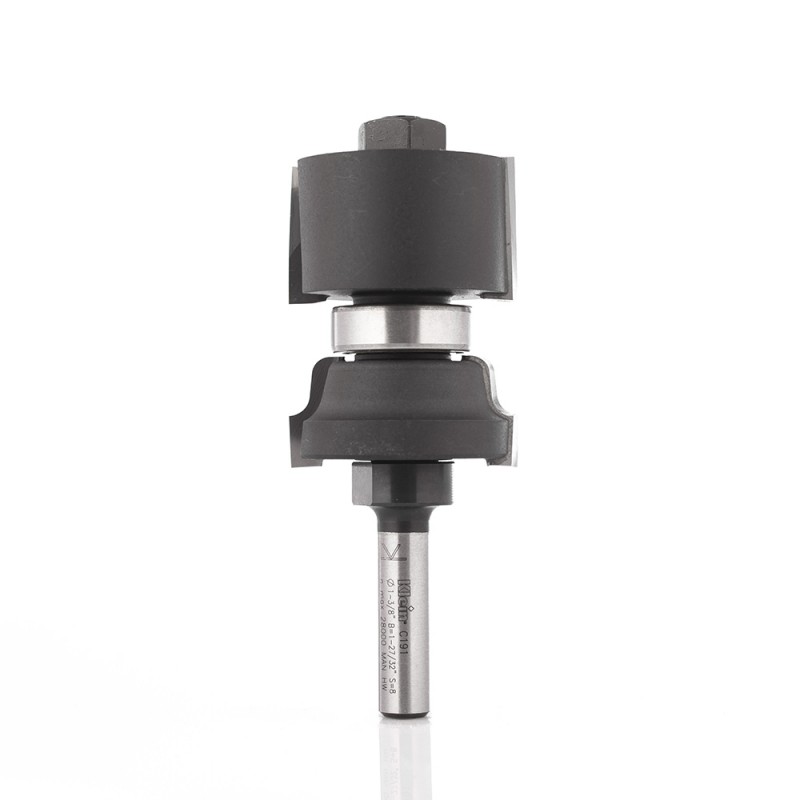

hw ogee window sash assembly with ball bearing guide z2
E191 - G191 - C191

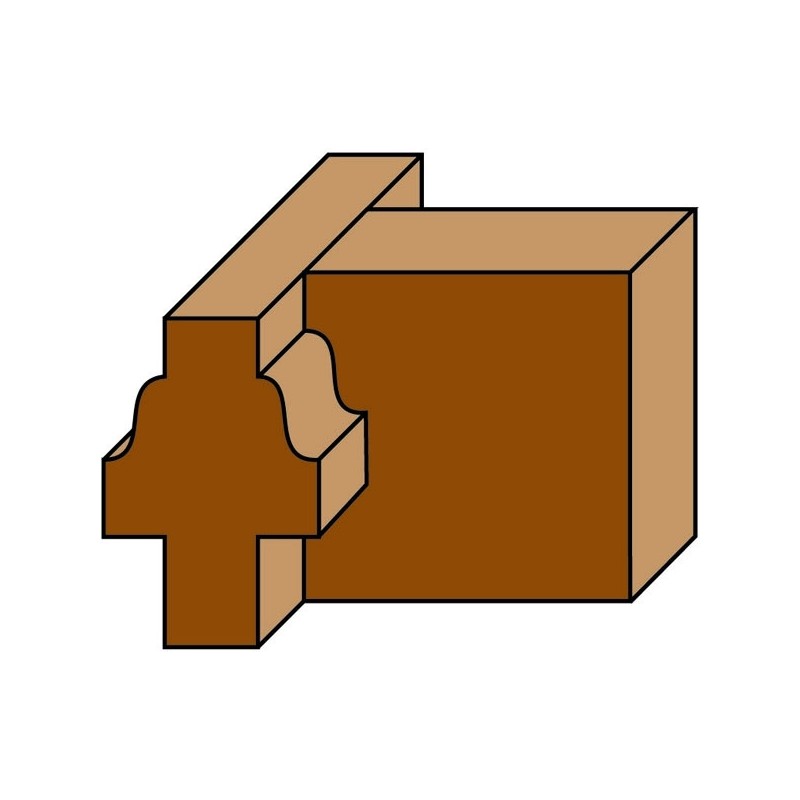

A one piece set for producing lamb's tongue sash bar and its scribe. The set is initially used for scribing. The assembly which is already prepared at factory, does the cutting of the tongue profile (along the grain). By adding the straight cut onto the arbor, the set can be used for profiling (across the grain). To be used with router in stationary mode.

Download instruction sheet

Softwood

Hardwood

Chipboard

Router table

slot cutter arbors - G117.122.R

View

spacers - Z057.003.N

View

spacers - Z057.004.N

View

spacers - Z057.005.N

View

spacers - Z057.006.N

View

spacers - Z057.008.N

View

ball bearings - Z050.008.N

View

S (shank)

B (cutting length)

L (total length)

View Catalog

Download PDF

If you are interested in this product:

Item	S	D	D1	D2	d	B	L	Z	Thickness	Note	Price	Quantity
E191.350.R Details	12	-	35	22	-	47	96	-	-	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
G191.350.R Details	12.7(1/2”)	-	35	22	-	47	96	-	-	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
C191.350.R Details	8	-	35	22	-	47	96	-	-	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
G117.120.R Details	12.7(1/2”)	-	-	-	7.94	53	96	-	-	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
C191.500.R Details	-	35	-	-	8	-	-	2	17	Spare profile cutter	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
C191.501.R Details	-	35	-	-	8	-	-	2	22	Spare rabbeting cutter	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
