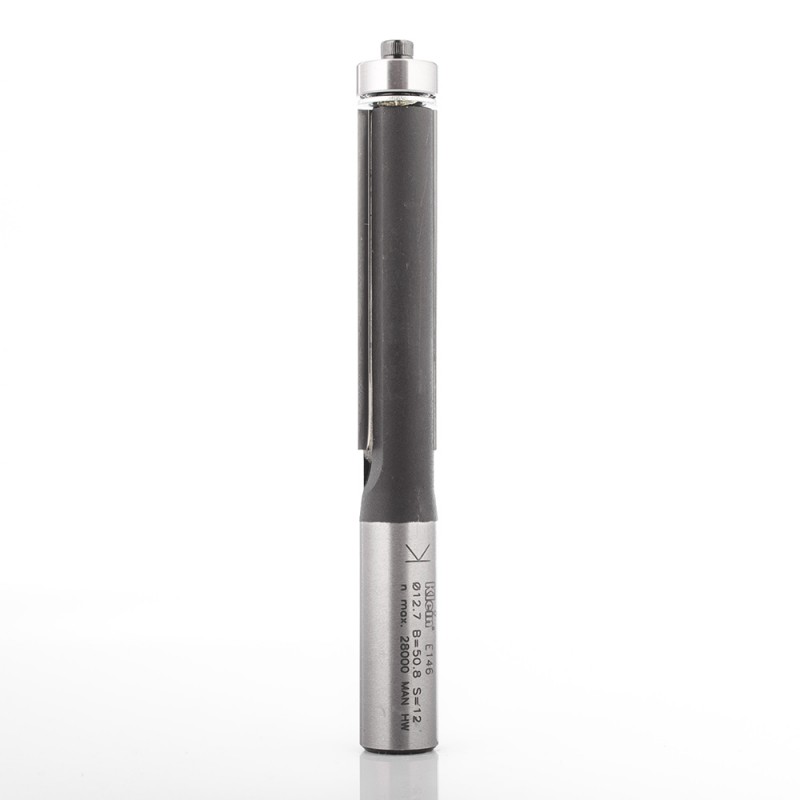

hw flush trim bits with ball bearing guide z2

Watch the 360° video

hw flush trim bits with ball bearing guide z2
E146 - G146

The high quality Klein router bits satisfy the most accurate applications required by the marketplace today. In order to achieve the highest level of quality, our production department has continually invested in and equipped with the advanced technologies. Moreover we always pay detail attention to the choice of raw material, producing router bits for top market performance, precision and cutting life.

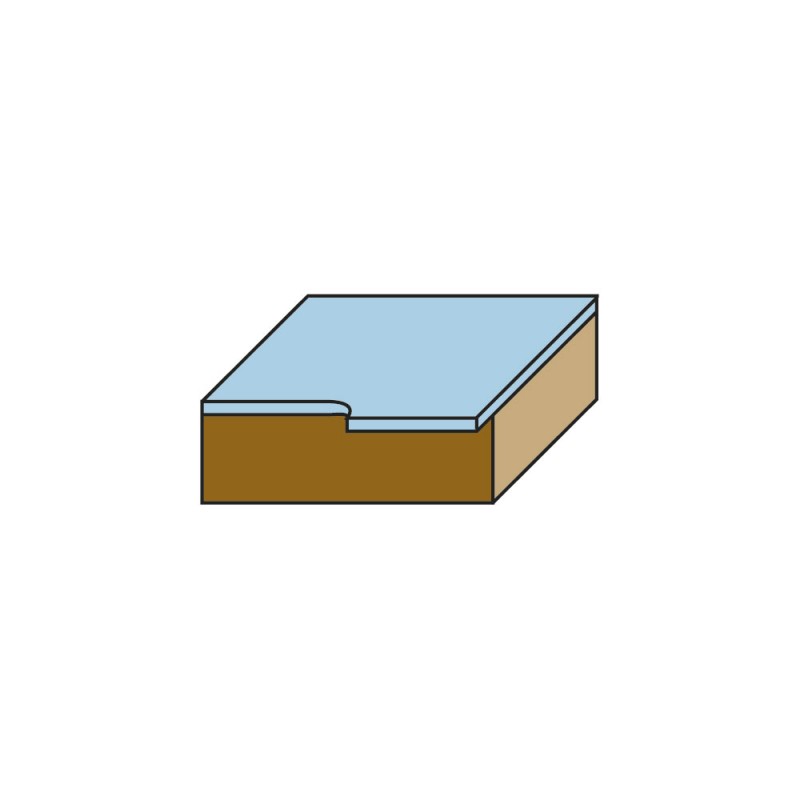

Klein^®trimming bits with straight cut are suitable for smooth and well-finished edges on melamine and veneered panels. They are constantly checked for tolerance, balance and security reason. The ball bearing, having the same diameter of the cutters, trims any overlap leaving a flat and smooth edge. Two flutes provide fast cutting and good chipping ejection.

Softwood

Hardwood

Laminate / double side laminate

Chipboard

Hand router machine

Router table

icona ball bearings

ball bearings - Z050.003.N

usable only on: E146.126.R - G146.126.R - E146.127.R - G146.127.R - E146.128.R - G146.128.R - E146.129.R - G146.129.R

icona washers

washers - Z053.003.N

usable only on: E146.126.R - G146.126.R - E146.127.R - G146.127.R - E146.128.R - G146.128.R - E146.129.R - G146.129.R

icona spring washers

spring washers - Z054.002.N

icona cheese head screws

cheese head screws - Z051.002.R

usable only on: E146.126.R - G146.126.R - E146.127.R - G146.127.R - E146.128.R - G146.128.R - E146.129.R - G146.129.R

icona ball bearings

ball bearings - Z050.005.N

usable only on: E146.190.R - G146.190.R - E146.191.R - G146.191.R - E146.192.R - G146.192.R

icona washers

washers - Z053.002.N

usable only on: E146.190.R - G146.190.R - E146.191.R - G146.191.R - E146.192.R - G146.192.R

icona cheese head screws

cheese head screws - Z051.004.R

usable only on: E146.190.R - G146.190.R - E146.191.R - G146.191.R - E146.192.R - G146.192.R

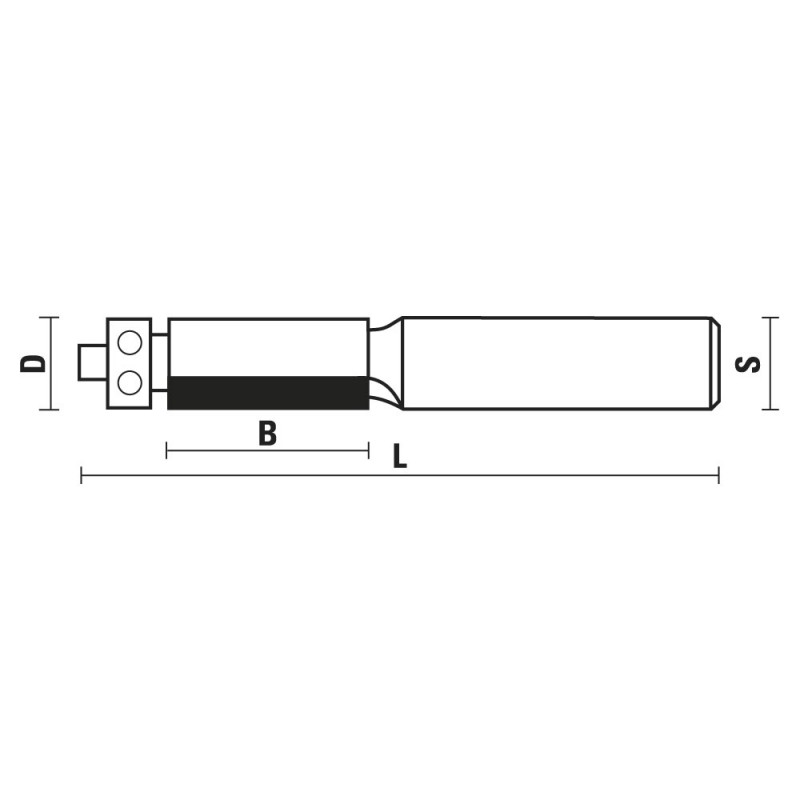

S (shank)

D (diameter)

B (cutting length)

L (total length)

If you are interested in this product:

Item	S	D	B	L	Note	Price	Quantity
E146.126.R Details	12	12.7	13	71	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
G146.126.R Details	12.7 (1/2“)	12.7	13	71	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
E146.127.R Details	12	12.7	25	84	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
G146.127.R Details	12.7 (1/2“)	12.7	25	84	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
E146.128.R Details	12	12.7	38	98	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
G146.128.R Details	12.7 (1/2“)	12.7	38	98	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
E146.129.R Details	12	12.7	51	106	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
G146.129.R Details	12.7 (1/2“)	12.7	51	106	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
E146.190.R Details	12	19	25	82	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
G146.190.R Details	12.7 (1/2“)	19	25	82	-	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
E146.191.R Details	12	19	38	98	Axial angle	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
G146.191.R Details	12.7 (1/2“)	19	38	98	Axial angle	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
E146.192.R Details	12	19	51	108	Axial angle	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
G146.192.R Details	12.7 (1/2“)	19	51	108	Axial angle	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
