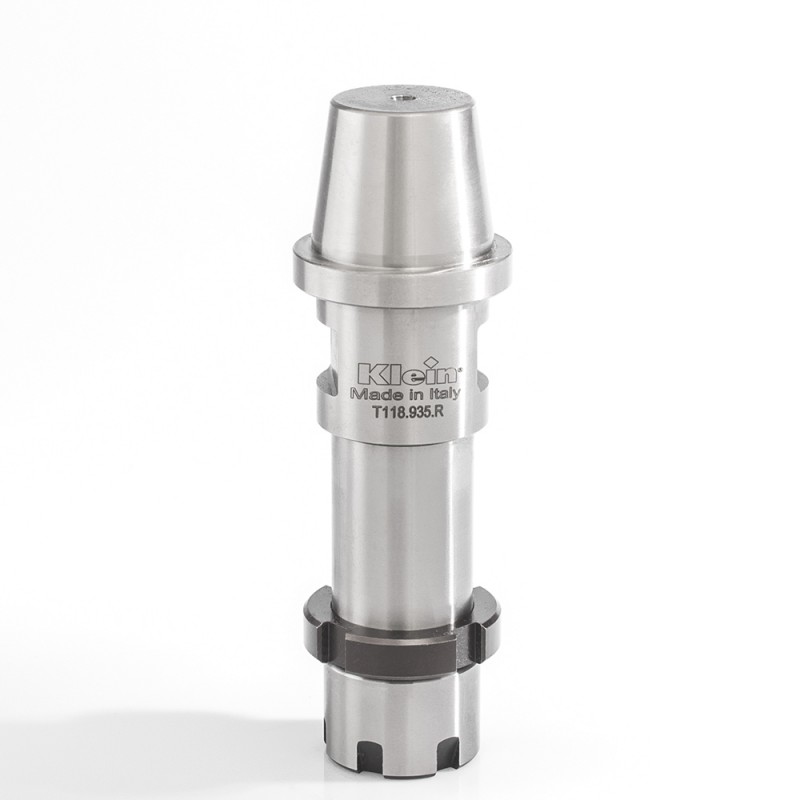

COLLET CHUCKS DIN 6499 (ER32) FOR BACCI AND GREDA
T118


  • Supplied with ER20 Mini nut and return ring nut (without spring collet)
  • For Bacci/Greda CNC router machines.
  • Shank taper with 8° deg (ER32)
  • Balanced to 24000 RPM
  • High rigidity and high precision BCK shaft for BACCI machines, which can be mounted on the spindle without chuck. With shaft 25 mm and length 85 mm end with ER20 MINI nut for tool connection and counter nut.
icona CNC machining centres

CNC machining centres

icona torque wrenches for “mini” nuts

torque wrenches for “mini” nuts

icona wrenches for collet nut “mini”

wrenches for collet nut “mini”

icona collet nuts

collet nuts

icona return ring nut

return ring nut

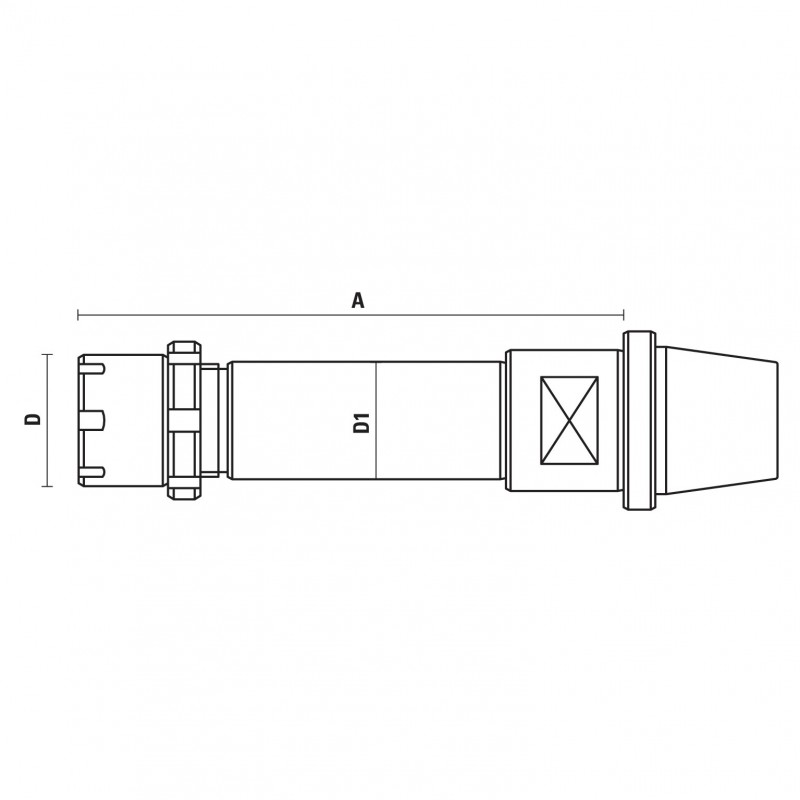

A
D (diameter)
D1
Spring collets
Clamping nut
Rotation
Return ring nut
View Catalog Download PDF

If you are interested in this product:

CONTACT US
Item A D D1 Spring collets Clamping nut Rotation Return ring nut Price Quantity
T118.935.R
Details
85 28 25 Ø 2÷13 (Art. T126/ER20) Z091.404.R RH Z091.904.R To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
