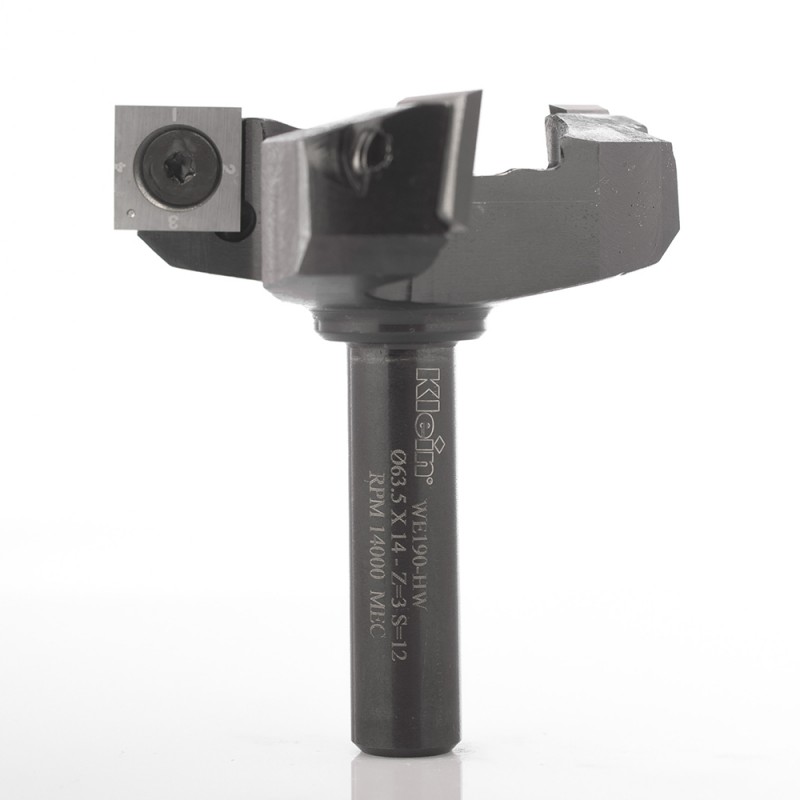

hw insert router bits for planing and rabbeting

hw insert router bits for planing and rabbeting
W190 - WC190 - WE190 - WG190

  • Used for surfacing MDF, balsa and particle board and making deep rabbet (also known as Flycutter - Spoilboard cutter)
  • 10° shear angle for better performance
  • Suitable for processing every kind of wood
  • Sold complete with interchangeable insert knives with 4 cutting edges for longer tool life (see our item Z055.007.N)
  • To be used on machining centres and CNC routers
  • Right-hand rotation
  • Torx key included

For excellent performance and up to 40 times longer tool life, use our solid PCD insert knives.

icona Plywood

Plywood

icona Softwood

Softwood

icona Hardwood

Hardwood

icona Chipboard

Chipboard

icona CNC machining centres

CNC machining centres

icona Hand router machine

Hand router machine

icona countersunk head screws

countersunk head screws - Z051.205.R

usable only on: W190.100.R - W190.101.R

View

icona hw standard reversible knives

hw standard reversible knives - Z555.007.N

usable only on: W190.100.R - W190.101.R - WE190.800.R - WE190.635.R - WG190.635.R

View

icona torx keys

torx keys - Z052.205.N

usable only on: W190.100.R - W190.101.R

View

icona countersunk head screws

countersunk head screws - Z051.020.R

usable only on: WE190.800.R - WE190.635.R - WG190.635.R

View

icona allen keys

allen keys - Z052.103.N

usable only on: WE190.800.R - WE190.635.R - WG190.635.R

View

icona rounded head screws

rounded head screws - Z051.210.R

usable only on: WE190.380.R - WC190.350.R

View

icona hw standard reversible knives

hw standard reversible knives - Z555.001.N

usable only on: WE190.380.R

View

icona torx keys

torx keys - Z052.201.N

usable only on: WE190.380.R

View

icona hw standard reversible knives

hw standard reversible knives - Z055.016.N

usable only on: WC190.350.R

View

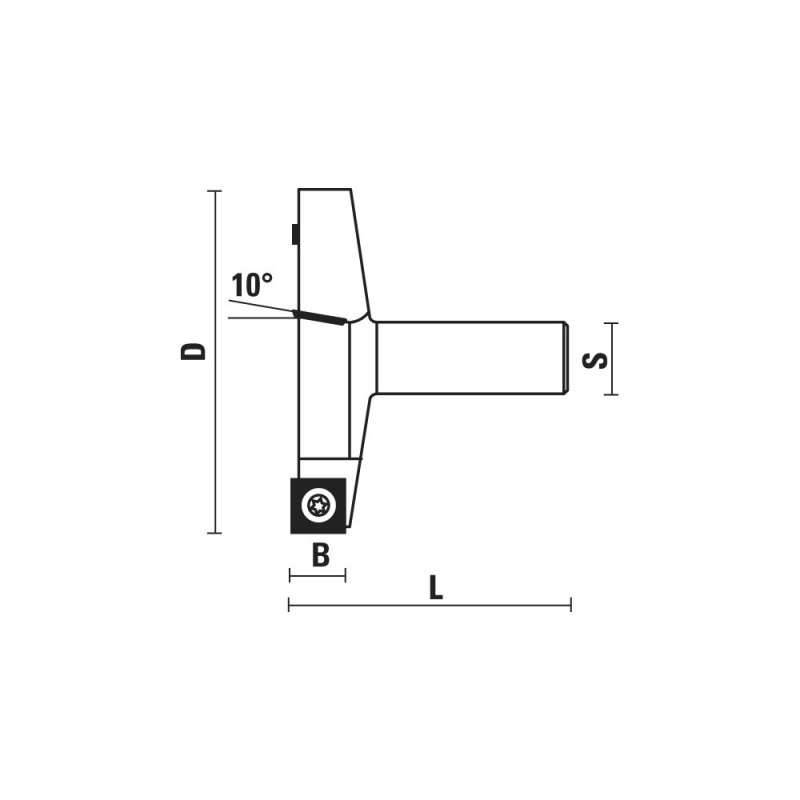

S (shank)
D (diameter)
B (cutting length)
L (total length)
Z
Rotation
View Catalog Download PDF

If you are interested in this product:

CONTACT US
Item S D B L Z Rotation Price Quantity
W190.100.R
Details
 Ø20x55 100 14 80 3 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
W190.101.R
Details
 Ø19.05(3/4”)x55 101.6 (4”) 14 76(3”) 3 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
WE190.800.R
Details
 Ø12x50 80 14 76 3 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
WG190.635.R
Details
 ø12.7(1/2”)x45 63.5 (2-1/2”) 14 70 (2-3/4”) 2 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
WE190.635.R
Details
 12X45 63.5 (2-1/2”) 14 70 3 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
WE190.380.R
Details
 12 38 12 60 3 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart

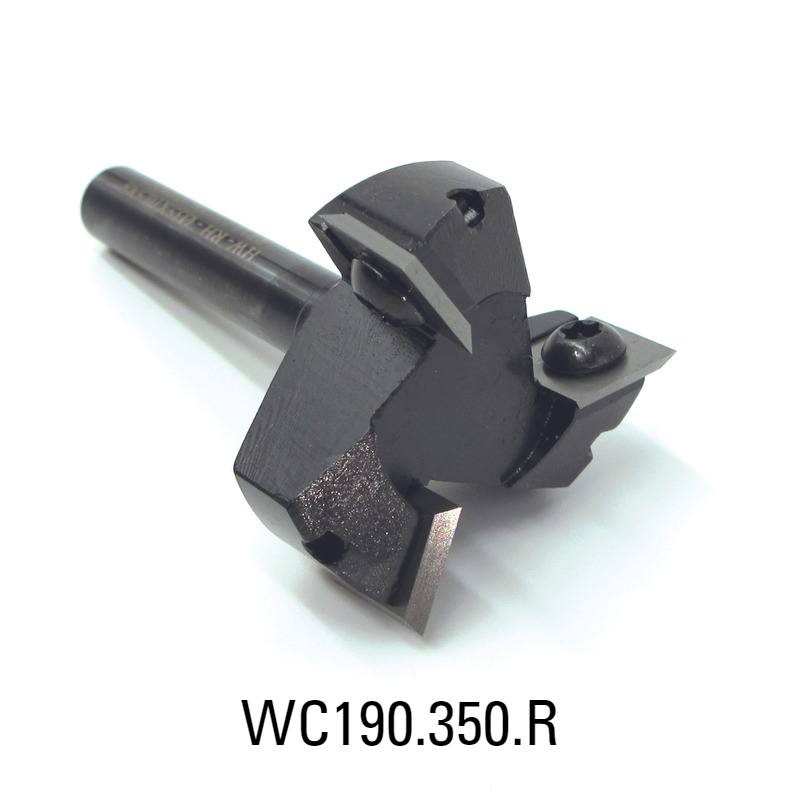

WC190.350.R
Details
 8 35 10.5 60 3 RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
