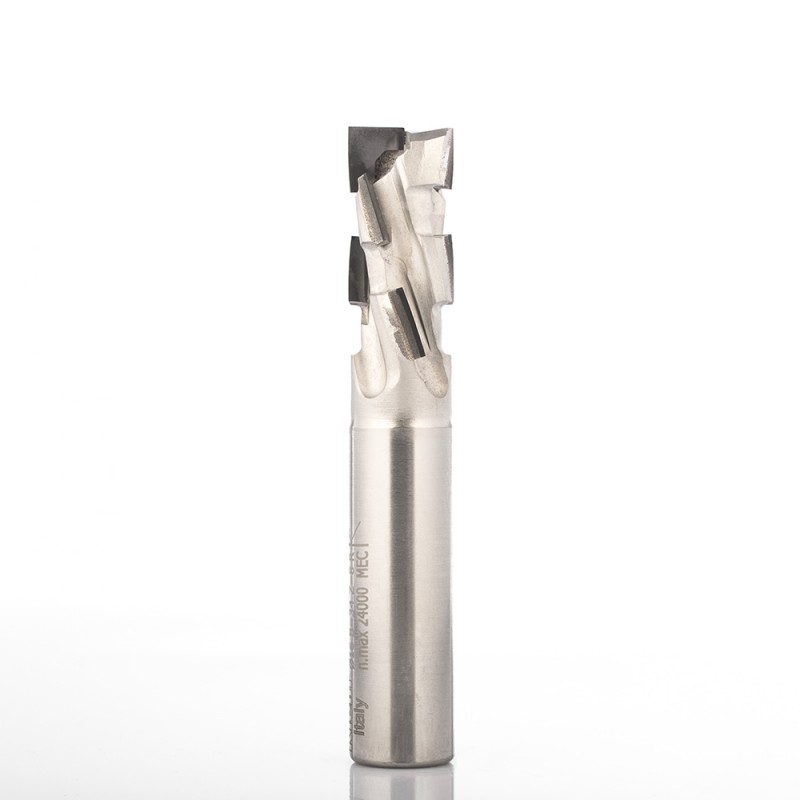

dp router bits with double tips
X508 - X509

HW plunging tip.
PCD tip height = 3 mm (three-times regrindable)
2+2 flutes with axial angle for best performance
PCD (Polycristalline Diamond) tips.
Used on CNC router machines.
Recommended for grooving and routing solid hard wood, veneered and laminated MDF.
Double number of PCD tips(Polycristalline Diamond) compared with items X501÷X503.

POLYCRISTALLINE DIAMOND TOOLS

MDF / HDF

Hardwood

Laminate / double side laminate

CNC machining centres

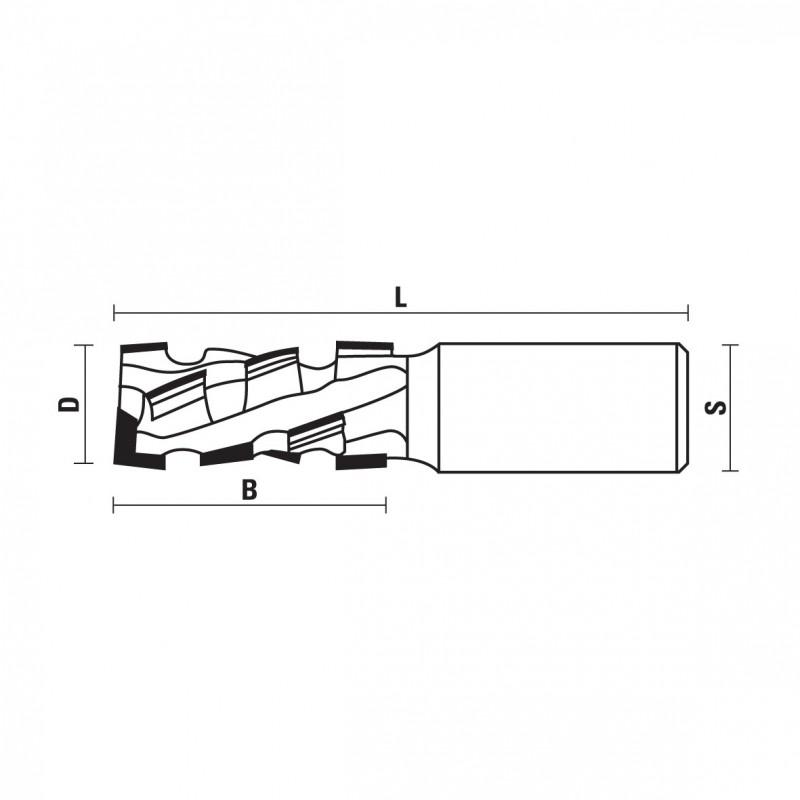

S (shank)

D (diameter)

B (cutting length)

L (total length)

Rotation

Tips

View Catalog

Download PDF

If you are interested in this product:

Item	S	D	B	L	Z	Rotation	Tips	Price	Quantity
X508.160.R Details	16x45	16	27	85	2+2	RH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X508.161.R Details	16x45	16	36	94	2+2	RH	8+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X508.161.L Details	16x45	16	36	94	2+2	LH	8+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X508.180.R Details	16x45	18	27	85	2+2	RH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X508.181.R Details	16x45	18	34	94	2+2	RH	8+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X508.181.L Details	16x45	18	34	94	2+2	LH	8+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X508.182.R Details	16x45	18	43	103	2+2	RH	10+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.180.R Details	20x50	18	27	85	2+2	RH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.180.L Details	20x50	18	27	85	2+2	LH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.181.R Details	20x50	18	36	95	2+2	RH	8+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.181.L Details	20x50	18	36	95	2+2	LH	8+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.182.R Details	20x50	18	44	103	2+2	RH	10+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.182.L Details	20x50	18	44	103	2+2	LH	10+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.200.R Details	20x50	20	27	85	2+2	RH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.200.L Details	20x50	20	27	85	2+2	LH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.201.R Details	20x50	20	36	94	2+2	RH	8+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.201.L Details	20x50	20	36	94	2+2	LH	8+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.202.R Details	20x50	20	44	103	2+2	RH	10+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.202.L Details	20x50	20	44	103	2+2	LH	10+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.203.R Details	20x50	20	53	112	2+2	RH	12+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X509.203.L Details	20x50	20	53	112	2+2	LH	12+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
