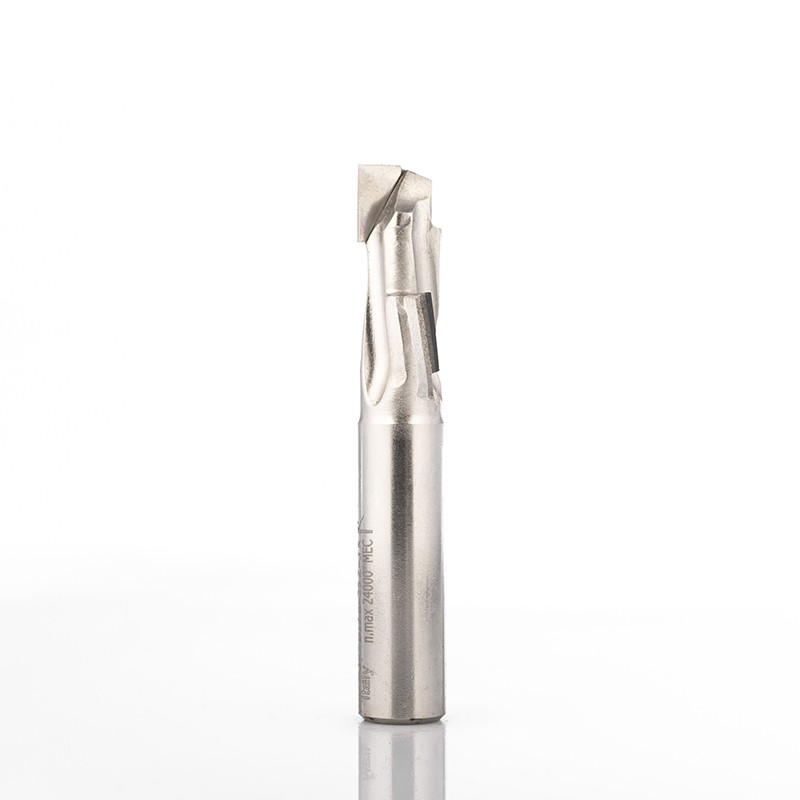

dp router bits
X500 - X501 - X502 - X503

PCD tip height = 3 mm (up to three-times regrindable)
HW plunging tip.
1+1 flutes with axial angle for best performance
PCD (Polycristalline Diamond) tips.

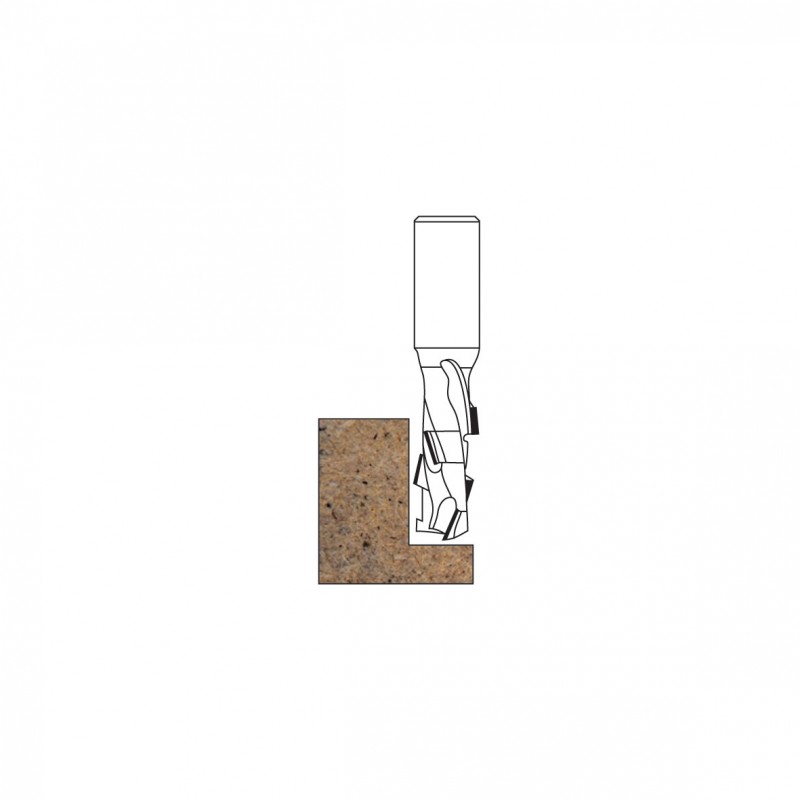

Recommended for grooving, nesting and routing solid hard wood, veneered and laminated MDF, chipboard, hpl, trespa, plastic...
Used on CNC router machines.

POLYCRISTALLINE DIAMOND TOOLS

MDF / HDF

Hardwood

HPL

Plastic, plexiglass, PVC

Laminate / double side laminate

Chipboard

CNC machining centres

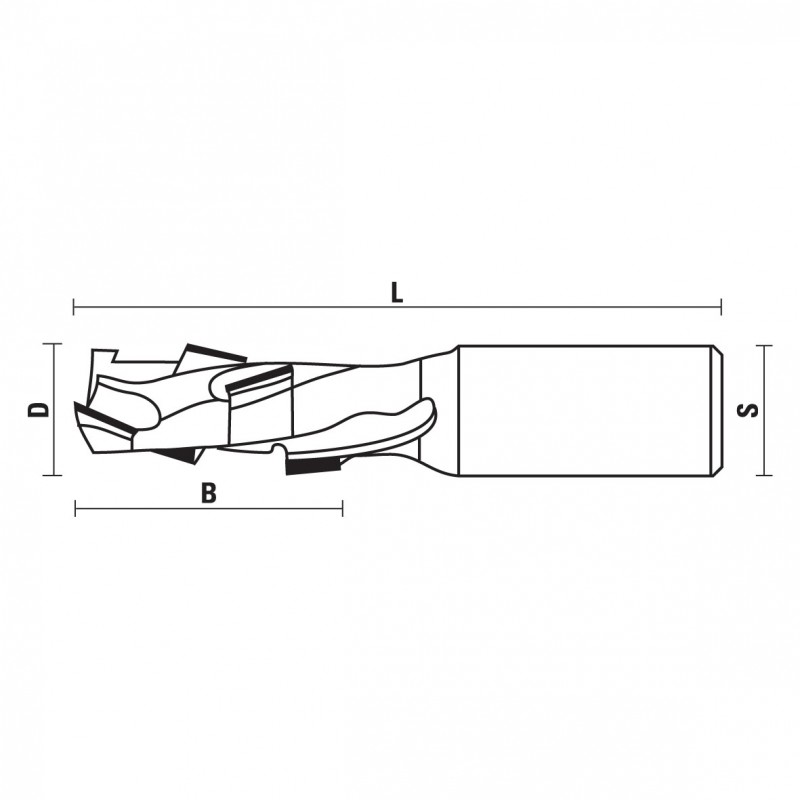

S (shank)

D (diameter)

B (cutting length)

L (total length)

Rotation

Tips

View Catalog

Download PDF

If you are interested in this product:

Item	S	D	B	L	Z	Rotation	Tips	Price	Quantity
X501.160.R Details	16x45	16	27	87	1+1	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X501.161.R Details	16x45	16	36	95	1+1	RH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X501.161.L Details	16x45	16	36	95	1+1	LH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X501.180.R Details	16x45	18	27	87	1+1	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X501.181.R Details	16x45	18	36	95	1+1	RH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X501.181.L Details	16x45	18	36	95	1+1	LH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X501.182.R Details	16x45	18	44	105	1+1	RH	5+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.180.R Details	20x50	18	27	87	1+1	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.180.L Details	20x50	18	27	87	1+1	LH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.181.R Details	20x50	18	36	95	1+1	RH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.181.L Details	20x50	18	36	95	1+1	LH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.182.R Details	20x50	18	44	105	1+1	RH	5+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.182.L Details	20x50	18	44	105	1+1	LH	5+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.200.R Details	20x50	20	27	87	1+1	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.200.L Details	20x50	20	27	87	1+1	LH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.201.R Details	20x50	20	36	95	1+1	RH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.201.L Details	20x50	20	36	95	1+1	LH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.202.R Details	20x50	20	44	105	1+1	RH	5+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.202.L Details	20x50	20	44	105	1+1	LH	5+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.203.R Details	20x50	20	53	112	1+1	RH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.203.L Details	20x50	20	53	112	1+1	LH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.160.R Details	25x55	16	27	87	1+1	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.180.R Details	25x55	18	27	87	1+1	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.181.R Details	25x55	18	36	95	1+1	RH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.181.L Details	25x55	18	36	95	1+1	LH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.182.R Details	25x55	18	44	105	1+1	RH	5+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.182.L Details	25x55	18	44	105	1+1	LH	5+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.203.R Details	25x55	20	53	113	1+1	RH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.203.L Details	25x55	20	53	113	1+1	LH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.160.R Details	20x45	16	25	85	1+1	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X500.120.R Details	12x40	12	27	75	1+1	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.183.R Details	20X50	18	53	113	1+1	RH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.204.R Details	20X50	20	61	121	1+1	RH	7+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X502.205.R Details	20X50	20	70	130	1+1	RH	8+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.250.R Details	25x50	25	27	87	1+1	RH	3+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.251.R Details	25x50	25	36	95	1+1	RH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.252.R Details	25x50	25	44	105	1+1	RH	5+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.253.R Details	25x50	25	53	113	1+1	RH	6+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.254.R Details	25x50	25	61	121	1+1	RH	7+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X503.255.R Details	25x50	25	70	130	1+1	RH	8+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
X500.121.R Details	12x35	12	36	84	1+1	RH	4+1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
