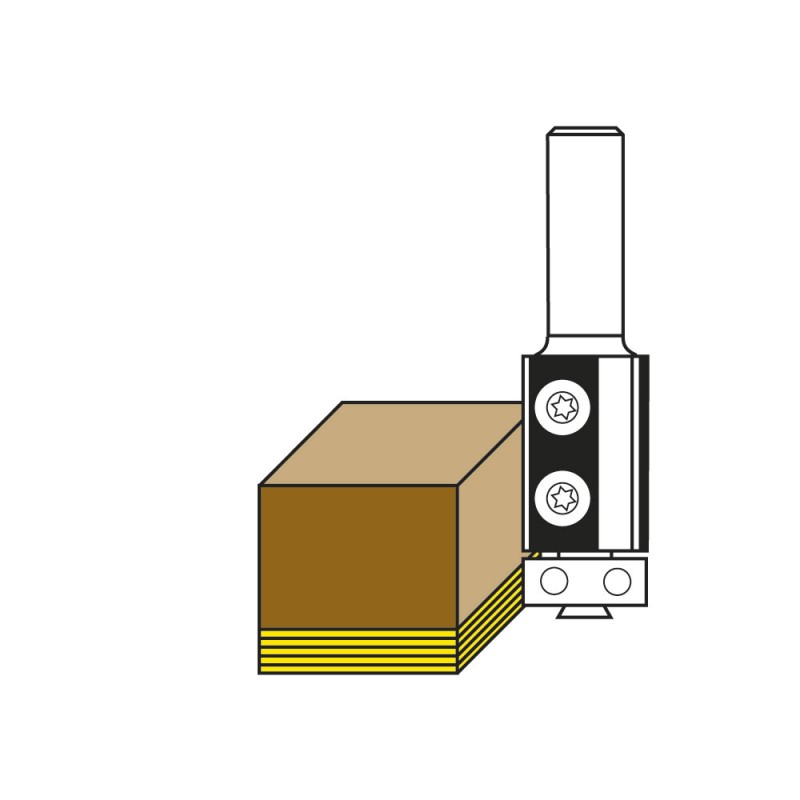

hw insert flush trimming bits z2
W113 - W114 - WG114


Always looking for innovative products and most useful solutions, SISTEMI has developed a new line of router bits with interchangeable carbide knives, which have a higher hardness than the tips used in traditional brazed router bits.

The main advantages granted by the use of HW reversible knives and the possibility of their easy replacement are:
Longer tool life, knives get less worn out and in case of damage they can be easily replaced;
Better finishing quality, also when working abrasive materials, the cutting edge can be maintained always sharp;
Higher precision and cutting accuracy, the dimensions of the tools do not change because there is no resharpening;
Better Quality/Price ratio, higher production efficiency, less costs and better performances.

  • These router bits are thought for having a clean and well finished edge on laminated and veneered panels. They are subject to continuous security check, cutting tolerance and balancing. While the ball bearing (same diameter of the cutter) acts as a guide to protect the edge, the cutter will obtain a perfect and smooth work. Designed and manufactured to allow precise cutting and good chipping ejection.
  • Lower ball bearing.
  • Supplied complete with key.
icona Plywood

Plywood

icona Softwood

Softwood

icona Hardwood

Hardwood

icona Laminate / double side laminate

Laminate / double side laminate

icona Chipboard

Chipboard

icona Hand router machine

Hand router machine

icona Router table

Router table

icona hw standard reversible knives

hw standard reversible knives - Z055.908.N

usable only on: W113.160.R - W113.190.R - W114.190.R - WG114.190.R

icona hw standard reversible knives

hw standard reversible knives - Z555.010.N

usable only on: W114.191.R - WG114.191.R

icona ball bearings

ball bearings - Z050.004.N

usable only on: W113.160.R

icona ball bearings

ball bearings - Z050.006.N

usable only on: W113.190.R - W114.190.R - W114.191.R - WG114.190.R - WG114.191.R

icona torx keys

torx keys - Z052.201.N

usable only on: W113.160.R - W113.190.R - W114.190.R - W114.191.R - WG114.190.R - WG114.191.R

icona countersunk head screws

countersunk head screws - Z051.017.R

usable only on: W113.160.R - W113.190.R - W114.190.R - W114.191.R - WG114.190.R - WG114.191.R

icona rounded head screws

rounded head screws - Z051.010.R

usable only on: W113.160.R - W113.190.R - W114.190.R - W114.191.R - WG114.190.R - WG114.191.R

icona hw standard reversible knives

hw standard reversible knives - Z055.908.N

usable only on: W113.160.R - W113.190.R - W114.190.R - WG114.190.R

icona hw standard reversible knives

hw standard reversible knives - Z555.010.N

usable only on: W114.191.R - WG114.191.R

icona ball bearings

ball bearings - Z050.004.N

usable only on: W113.160.R

icona ball bearings

ball bearings - Z050.006.N

usable only on: W113.190.R - W114.190.R - W114.191.R - WG114.190.R - WG114.191.R

icona torx keys

torx keys - Z052.201.N

usable only on: W113.160.R - W113.190.R - W114.190.R - W114.191.R - WG114.190.R - WG114.191.R

icona countersunk head screws

countersunk head screws - Z051.017.R

usable only on: W113.160.R - W113.190.R - W114.190.R - W114.191.R - WG114.190.R - WG114.191.R

icona rounded head screws

rounded head screws - Z051.010.R

usable only on: W113.160.R - W113.190.R - W114.190.R - W114.191.R - WG114.190.R - WG114.191.R

S (shank)
D (diameter)
B (cutting length)
L (total length)
Z
View Catalog Download PDF

If you are interested in this product:

CONTACT US
Item S D B L Z Price Quantity
W113.190.R
Details
8 19 30 70 2 To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
W114.190.R
Details
12 19 30 80 2 To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
W114.191.R
Details
12 19 50 100 2 To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
W113.160.R
Details
8 16 30 70 2 To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
WG114.190.R
Details
12.7(1/2”) 19 30 80 2 To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
WG114.191.R
Details
12.7(1/2”) 19 50 100 2 To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
