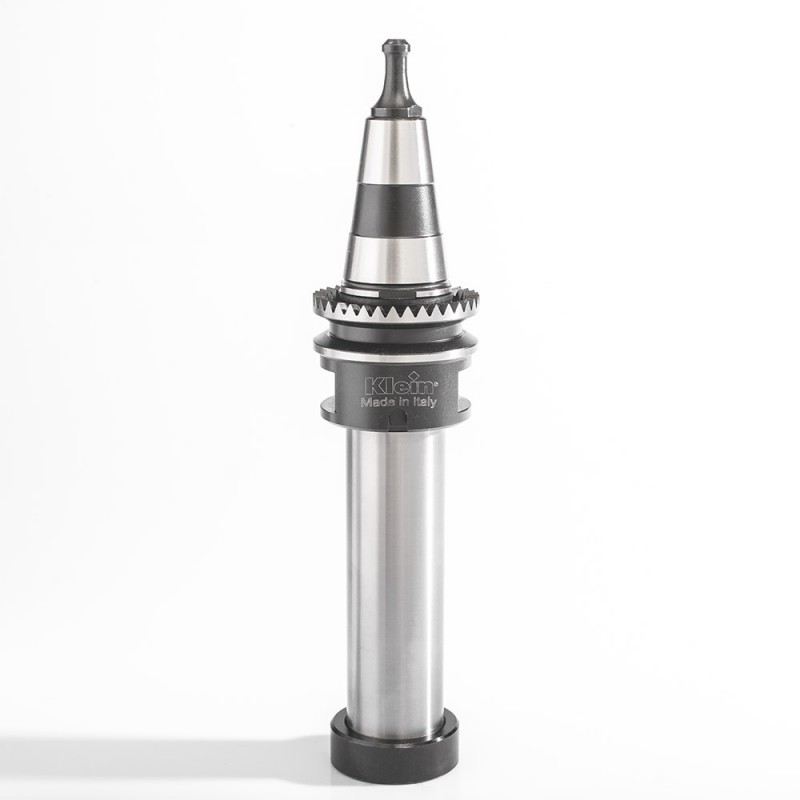

cutter arbors with iso 30 taper

Watch the 360° video

cutter arbors with iso 30 taper
T128

Complete with retaining pawl and end cap (our Item Z092)
Nr. 3 pin holes to 120°.
Retaining pawl T118.790.R for: Morbidelli, SCM.

CNC machining centres

icona ADJUSTABLE DEMOUNT DEVICES

ADJUSTABLE DEMOUNT DEVICES - T139.150.N

icona retaining pawls for concentric chuck

retaining pawls for concentric chuck - T118.790.R

icona cheese head screws

cheese head screws - Z051.016.R

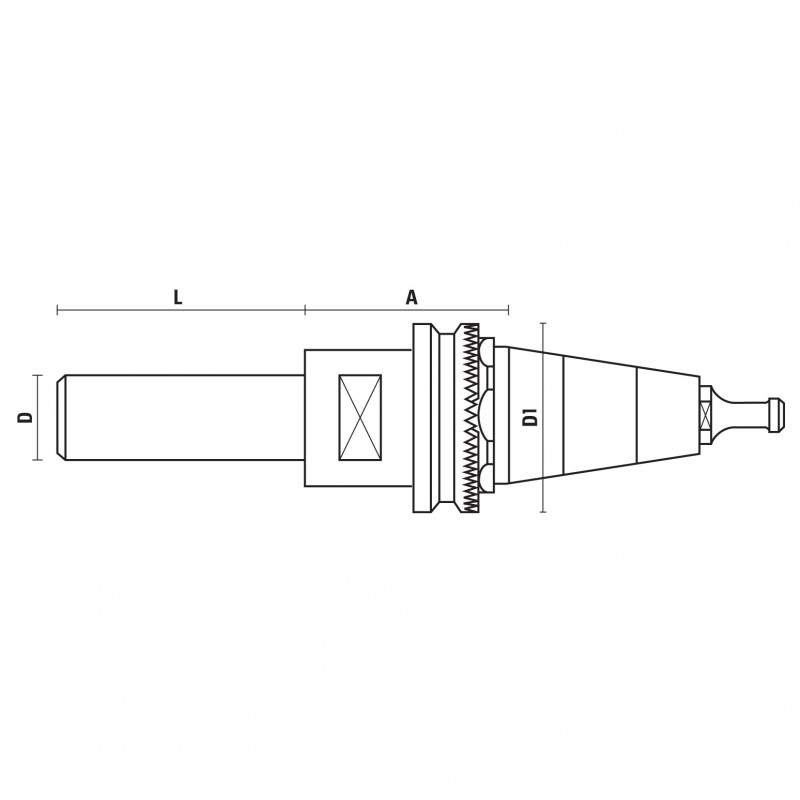

A

D (diameter)

D1

L (total length)

Taper

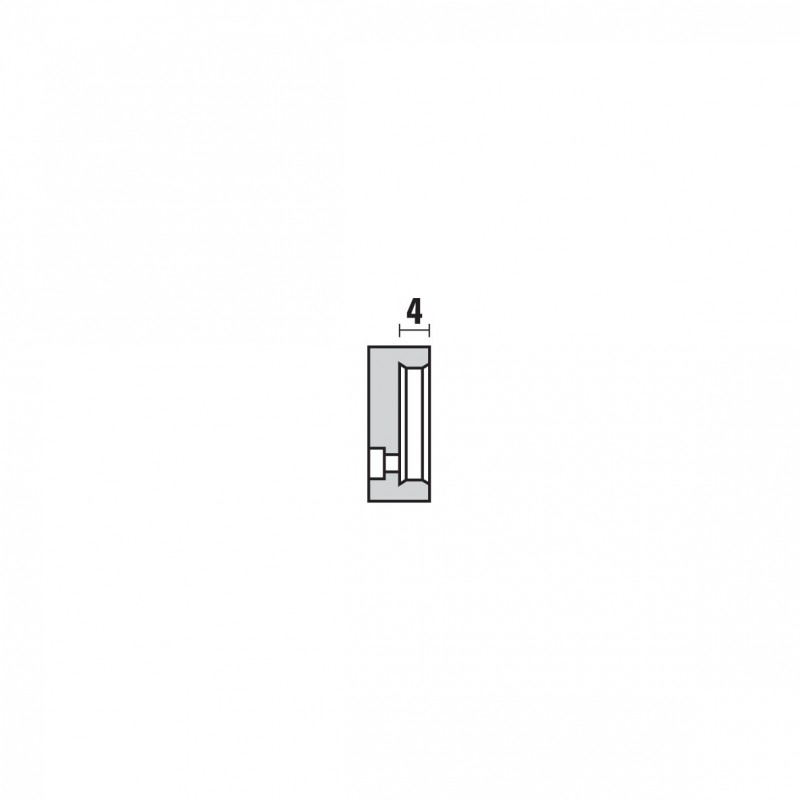

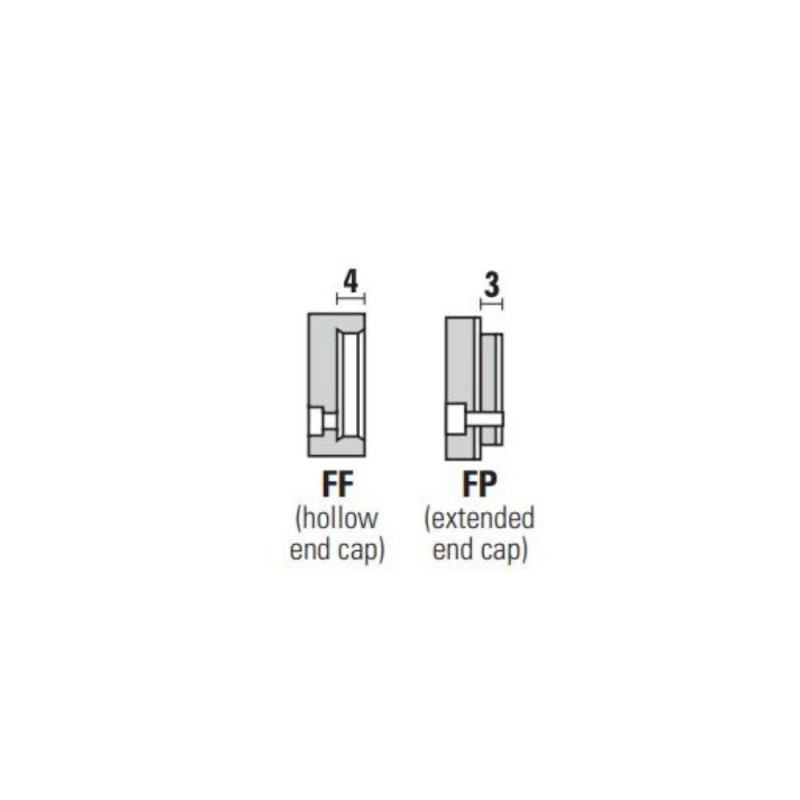

End cap

If you are interested in this product:

Item	A	D	D1	L	Taper	End cap	Price	Quantity
T128.690.N Details	39	30	49	70	ISO 30	FF-Z092.001.R	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
T128.700.N Details	39	30	49	100	ISO 30	FF-Z092.001.R	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
T128.690.NM Details	39	30	49	70	ISO 30	FP-Z092.002.R	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
T128.700.NM Details	39	30	49	100	ISO 30	FP-Z092.002.R	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
