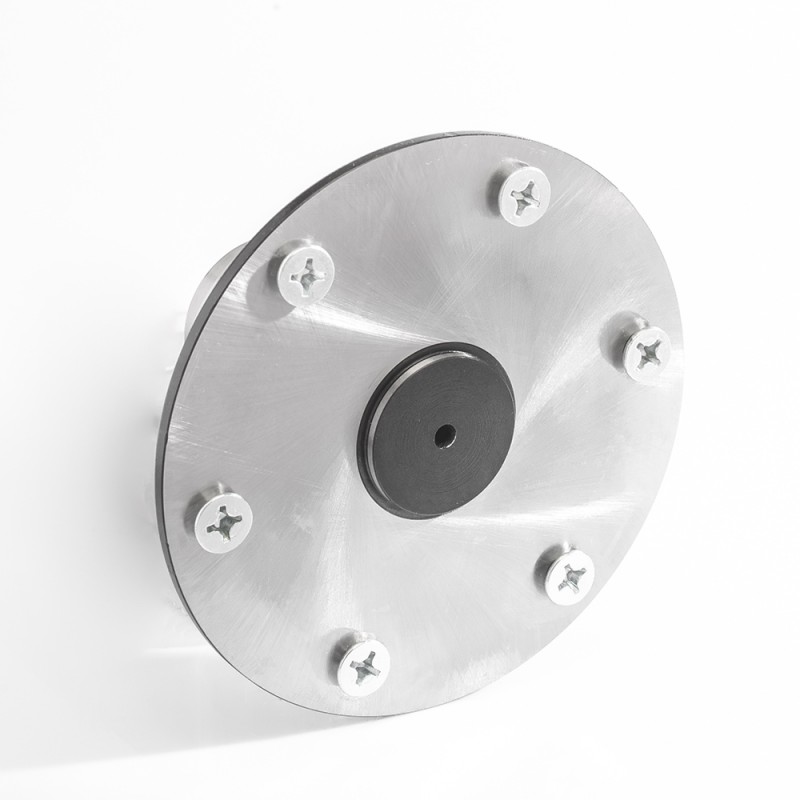

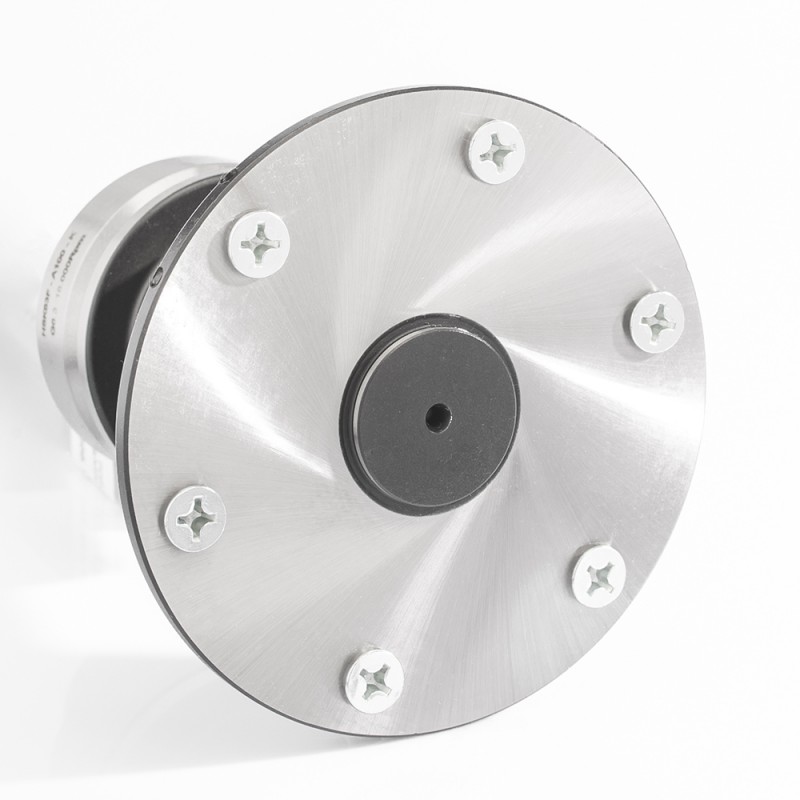

hsk63 adapters for circular sawblades
T128


  • Complete with nr. 6 screws (M6x10) for the proper assembly of the sawblades with 60° at 90 mm distance
  • For mounting saw blades with 30 mm bore.
  • Thanks to the countersunk screws, the mounting of the saw blade is guaranteed and it is also possible to perform flush cutting operations, mitre and rafter cuts. The use of the security flange (our article Z092) is suggested instead when better stability and concentricity are required for more precise cuts.
  • For mounting saw blades with diameter between 200 and 350 mm (for larger diameter a flange of security has to be used, see our item Z092)

Download instruction sheet T128.160.R-170.R

Download instruction sheet T128.165.R-175.R

icona CNC machining centres

CNC machining centres

icona ADJUSTABLE DEMOUNT DEVICES

ADJUSTABLE DEMOUNT DEVICES - T139.163.N

icona countersunk head screws

countersunk head screws - Z051.014.R

icona security flange for sawblades adapters

security flange for sawblades adapters - Z092.100.N

A
D (diameter)
D1
B (cutting length)
L (total length)
Taper
D2
View Catalog Download PDF

If you are interested in this product:

CONTACT US
Item A D D1 B L Taper D2 Price Quantity
T128.160.R
Details
40 110 30 2.5 65 HSK63F 63 To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T128.165.R
Details
100 110 30 2.5 125 HSK63F 63 To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T128.175.R
Details
100 110 30 2.5 132 HSK63E 63 To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T128.170.R
Details
40 110 30 2.5 72 HSK63E 63 To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
