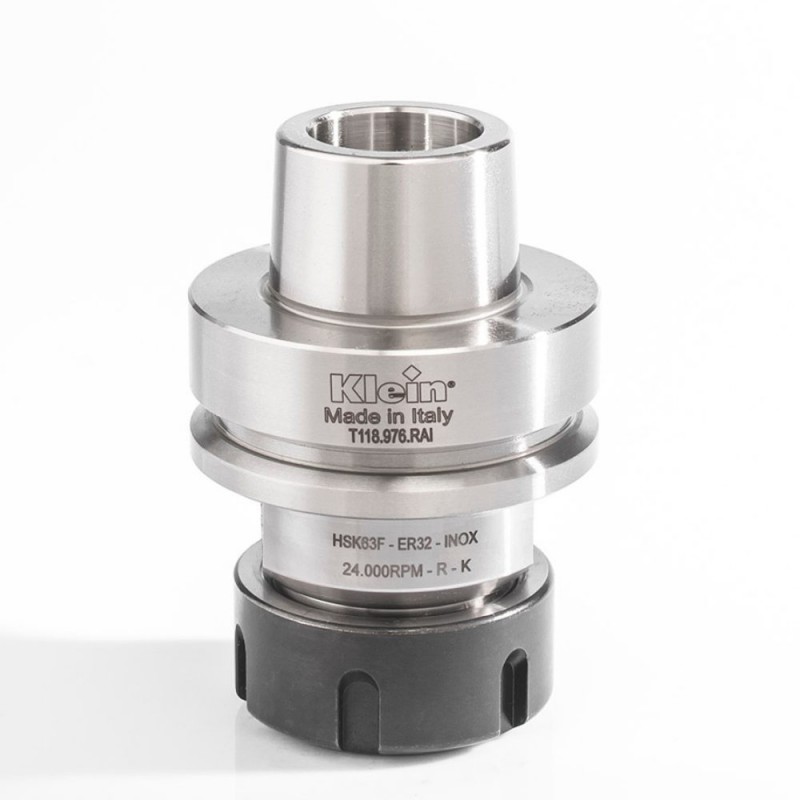

collet chucks hsk63f inox
T118

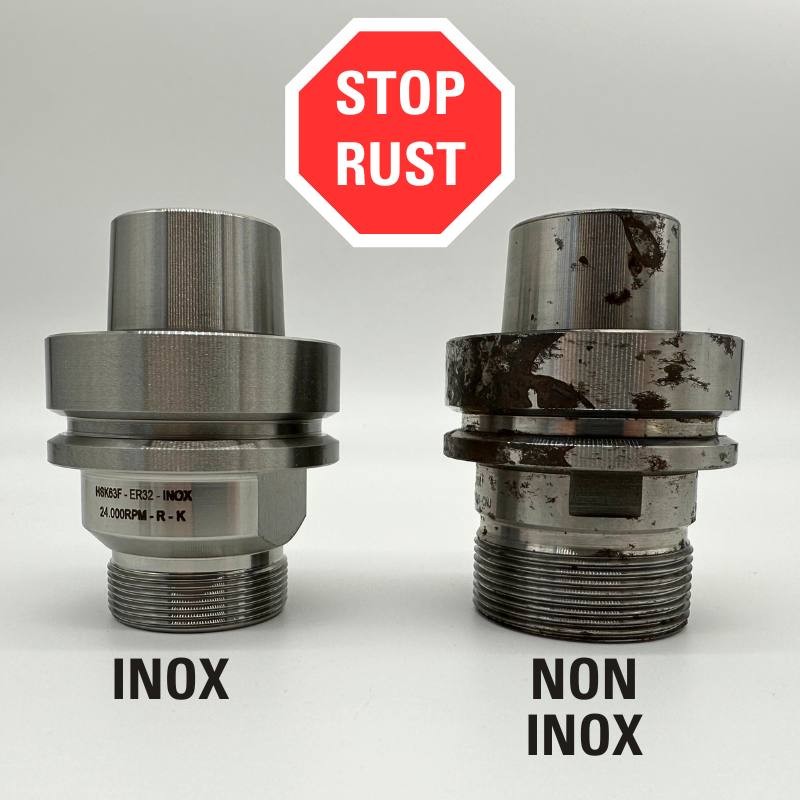

  • Special tool holders produced in stainless steel AISI 420
  • Supplied with nut (without collet).
  • Balanced to 24000 RPM
  • Needed when working with coolant: machines for marble, glass, aluminium working and others;
  • Highly recommended when processing resinoid wood and composite materials
  • Suggested when working in “humid” environment.
  • Extremely low maintenance costs, easy to clean;
  • When used with coolant our water-tight spring collets are suggested (our Item T119 and T123).
  • For the spring collets see our item T119(ER32) - T123(ER40) - T124(EOC25-SYOZ25); for the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).
  • To be used on our adjustable demount device Klein® T139.
  • The "A" measure will be determined with clamped router bits' shanks by using both our spring collets DIN6499 and DIN6388. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
  • The hollow taper shank is produced according to DIN69893 for inserting the Balluff microchip.
icona CNC machining centres

CNC machining centres

icona torque wrenches for “standard” nuts

torque wrenches for “standard” nuts

icona torque hook wrenches

torque hook wrenches

icona wrenches

wrenches

icona wrenches for collet nut standard

wrenches for collet nut standard

icona collet nuts

collet nuts

icona collet nuts with ball bearing

collet nuts with ball bearing

icona ADJUSTABLE DEMOUNT DEVICES

ADJUSTABLE DEMOUNT DEVICES - T139.163.N

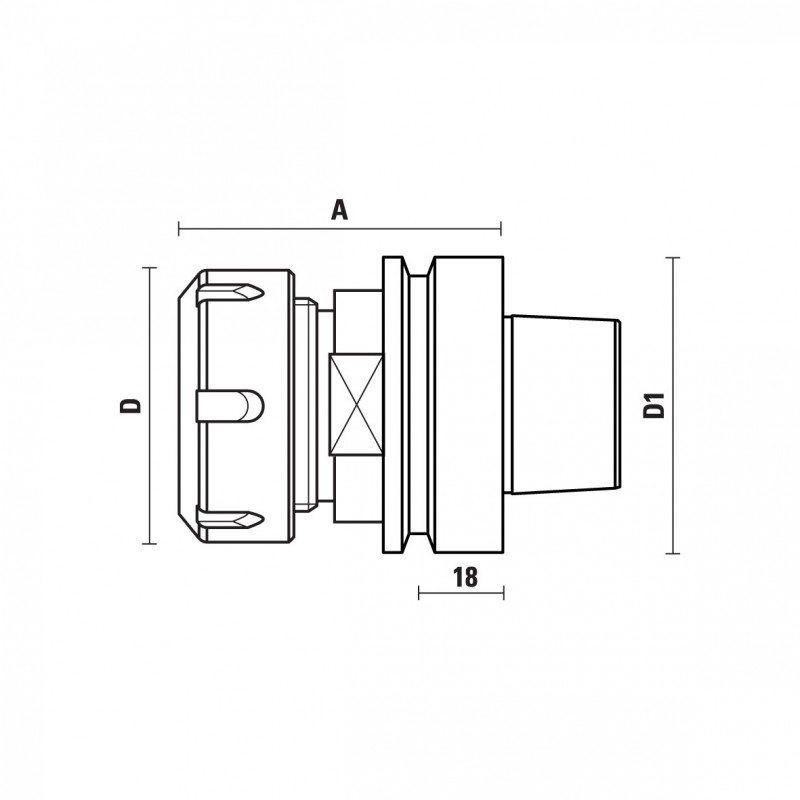

A
D (diameter)
D1
Spring collets
Clamping nut
Rotation
View Catalog Download PDF

If you are interested in this product:

CONTACT US
Item A D D1 Spring collets Clamping nut Rotation Price Quantity
T118.976.RAI
Details
74 50 63 Ø 2÷20 (Art. T119/ER32) Z091.001.R RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.980.RAI
Details
77 63 63 Ø 2÷30 (Art. T123/ER40) Z091.002.R RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.983.RAI
Details
78 60 63 Ø 3÷26 (Art. T124/EOC25) Z091.202.R RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.978.RAI
Details
74 50 63 Ø 2÷20 (Art. T119/ER32) Z091.101.R with ball bearing RH/LH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.982.RAI
Details
77 63 63 Ø 2÷30 (Art. T123/ER40) Z091.102.R with ball bearing RH/LH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.984.RAI
Details
78 60 63 Ø 3÷26 (Art. T124/EOC25) Z091.203.R with ball bearing RH/LH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
