collet chucks iso 30 scm/morbidelli
youtube-icon

Watch the 360° video

collet chucks iso 30 scm/morbidelli
T118

  • Special tool holder with serrated collar supplied with nut (without collet) and retaining pawl.
  • Threaded nut DIN 6499.
  • Threaded nut DIN 6388/EOC25(SYOZ25)
  • For the spring collets see our item T119 and T124; for the clamping nuts see our item Z091 (without ball bearing nut) and/or Z091 (with ball bearing nut); for the wrenches see our item Z052 (standard) and/or Z052 (torque).
  • With anti-adherent surface treatment “Impreglon”.
  • Retaining pawl T118.790.R for: Morbidelli, SCM.
  • To be used on our special demount device Klein® T139.001.N
  • The "A" measure will be determined with clamped router bits' shanks by using both our spring collets DIN6499 and DIN6388. The "A" measure may be subject to variations depending on the diameter of the clamped tools.
icona CNC machining centres

CNC machining centres

icona torque wrenches for “standard” nuts

torque wrenches for “standard” nuts

View

icona torque hook wrenches

torque hook wrenches

View

icona wrenches for collet nut standard

wrenches for collet nut standard

View

icona collet nuts

collet nuts

View

icona collet nuts with ball bearing

collet nuts with ball bearing

View

icona retaining pawls for concentric chuck

retaining pawls for concentric chuck - T118.790.R

View

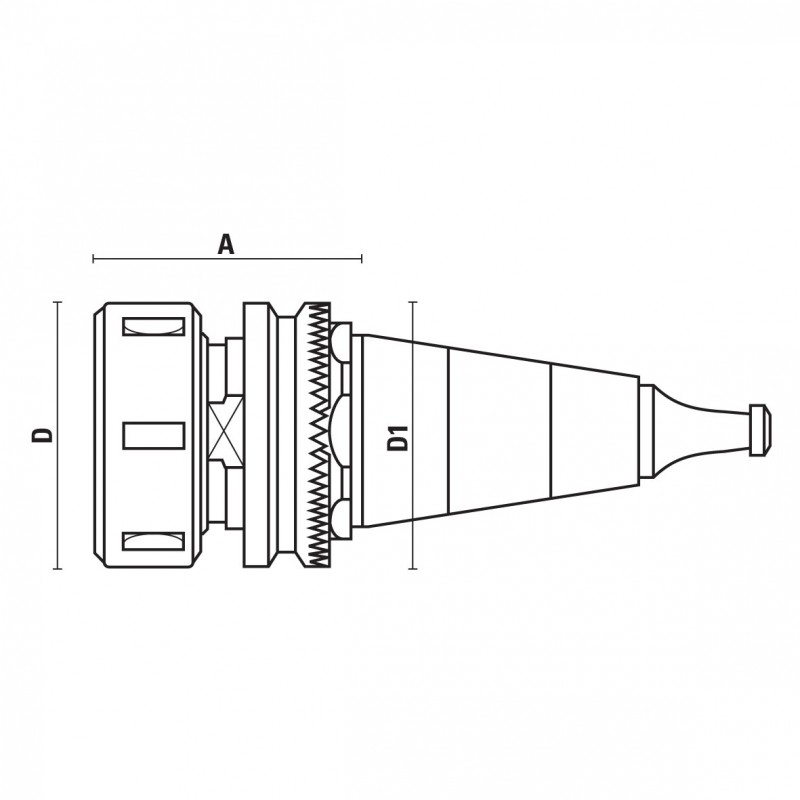

A
D (diameter)
D1
Spring collets
Clamping nut
Rotation
View Catalog Download PDF

If you are interested in this product:

CONTACT US
Item
A
D
D1
Spring collets
Clamping nut
Rotation
Price
Quantity
T118.700.R
Details
 55 50 49 Ø 2÷20 (Art. T119/ER32) Z091.001.R RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.701.R
Details
 71 60 49 Ø 3÷25 (Art. T124/EOC25) Z091.203.R with ball bearing RH/LH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.702.R
Details
 55 50 49 Ø 2÷20 (Art. T119/ER32) Z091.101.R with ball bearing RH/LH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.711.L
Details
 71 60 49 Ø 3÷25 (Art. T124/EOC25) Z091.202.L LH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
T118.711.R
Details
 71 60 49 Ø 3÷25 (Art. T124/EOC25) Z091.202.R RH To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
