hw insert flush trimming bits with ball bearing z2

Watch the 360° video

hw insert flush trimming bits with ball bearing z2
WC122

Sistemi has developed a new line of Klein router bits with interchangeable carbide knives, with an higher hardness and easy to be replaced, moreover there are other important advantages:

Longer tool life, with knives easy to be replaced,
Better finish quality thanks to the cutting edge always sharpened,
Higher measures precision because the dimensions of cutting edge don’t change,
Better quality/price ratio with an higher production efficiency.

Complete with reversible knives.

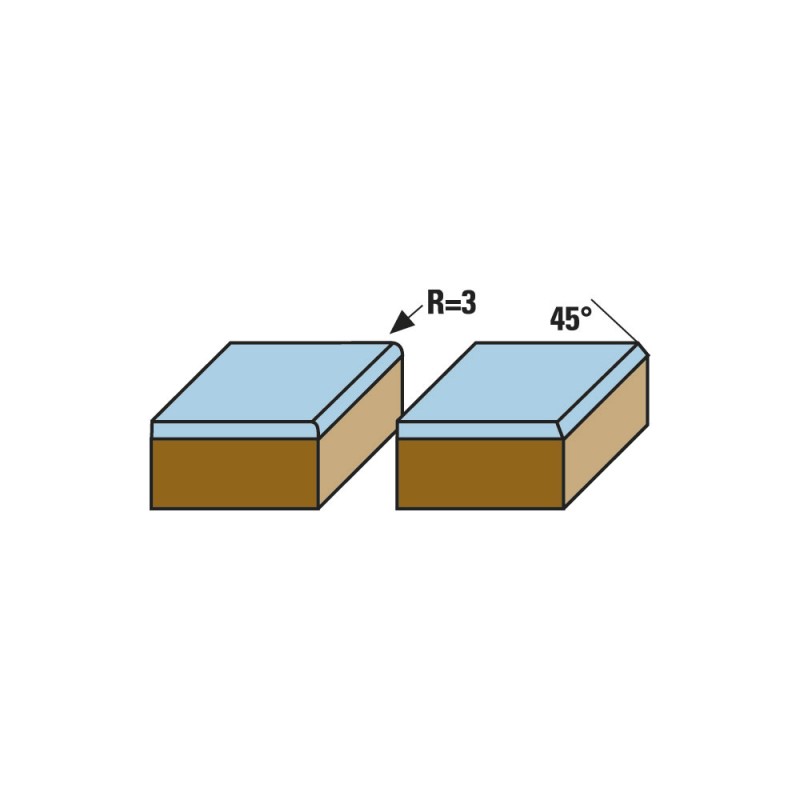

The same knives can be used for both 45° and R= 3 bevel.

Plywood

Softwood

Hardwood

Laminate / double side laminate

Chipboard

Hand router machine

Router table

ball bearings - Z050.003.N

View

hw knives - Z055.553.N

usable only on: WC122.273.R

View

slotted cheese head screws - Z051.501.R

View

hw knives - Z055.557.N

usable only on: WC122.274.R

View

hw knives - Z055.558.N

usable only on: WC122.275.R

View

hw knives - Z055.559.N

usable only on: WC122.276.R

View

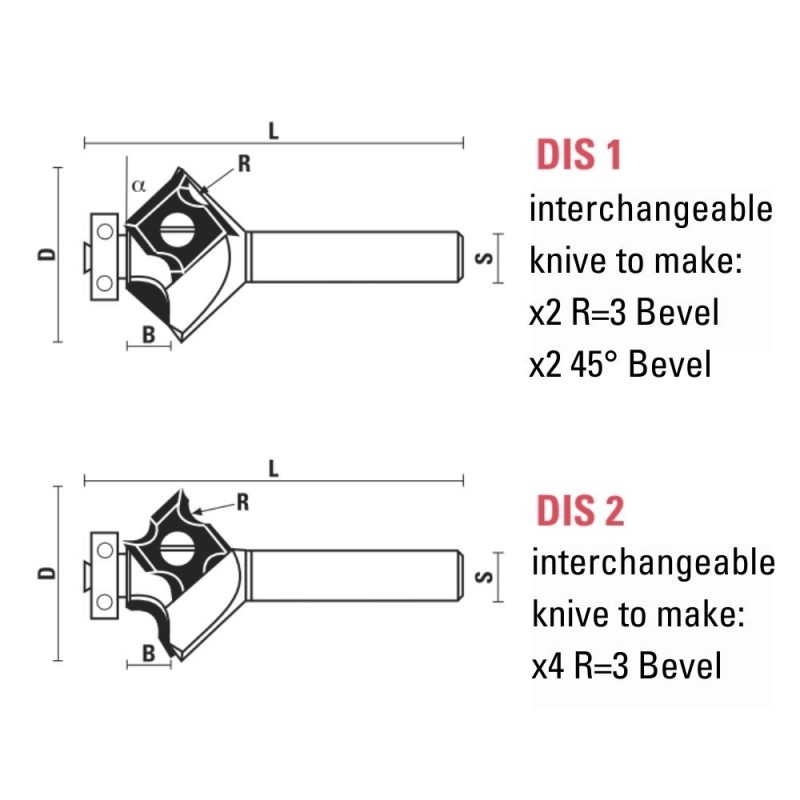

S (shank)

D (diameter)

B (cutting length)

L (total length)

α (angolo di taglio)

R (Radius)

Drawing

View Catalog

Download PDF

If you are interested in this product:

Item	S	D	B	L	α	R	Drawing	Price	Quantity
WC122.274.R Details	8	27.3	5.7	-	-	3	2	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
WC122.275.R Details	8	27.3	5.7	-	45°	2	1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
WC122.276.R Details	8	27.3	5.7	-	-	2	2	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
WC122.273.R Details	8	27.3	5.7	59	45°	3	1	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
