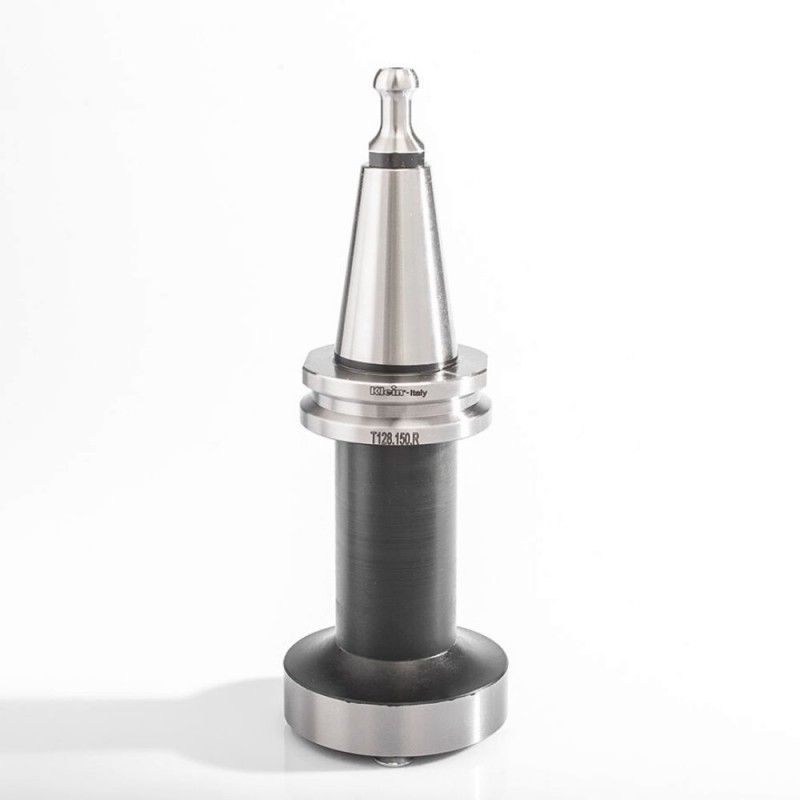

iso 30 adapters for circular sawblades

Watch the 360° video

iso 30 adapters for circular sawblades
T128

Nr. 4 pin holes 90°

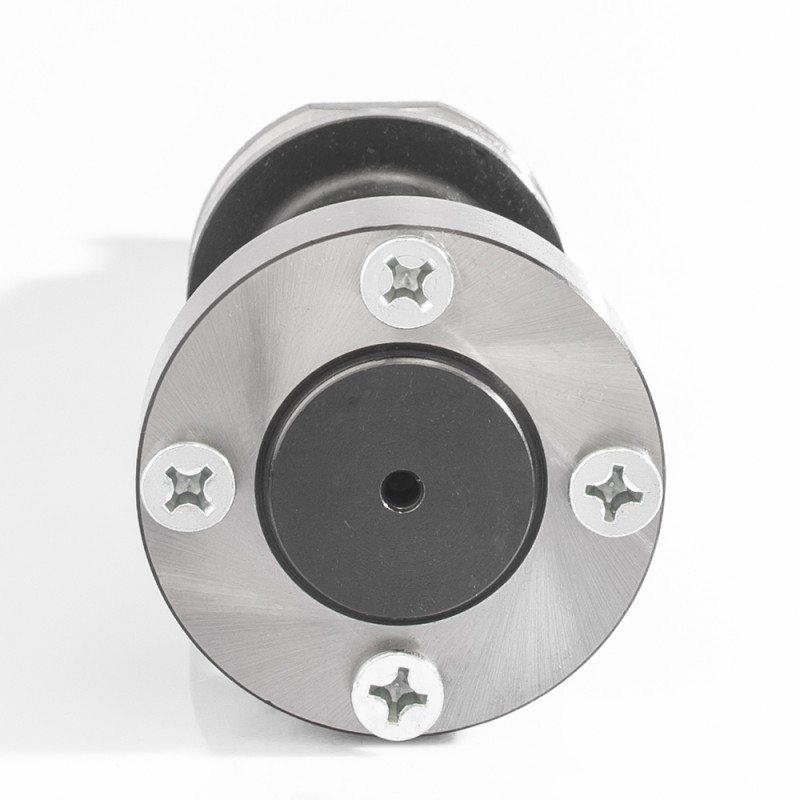

Complete with nr. 4 screws to fix the sawblade
For mounting saw blades with 30 mm bore
For mounting saw blades with diameter max 200 mm

CNC machining centres

icona retaining pawls for concentric chuck

retaining pawls for concentric chuck - T118.891.R

icona countersunk head screws

countersunk head screws - Z051.014.R

A

D (diameter)

D1

D2

B (cutting length)

L (total length)

Taper

If you are interested in this product:

Item	A	D	D1	D2	B	L	Taper	Price	Quantity
T128.150.R Details	100	60	30	50	2.5	174	ISO 30	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
