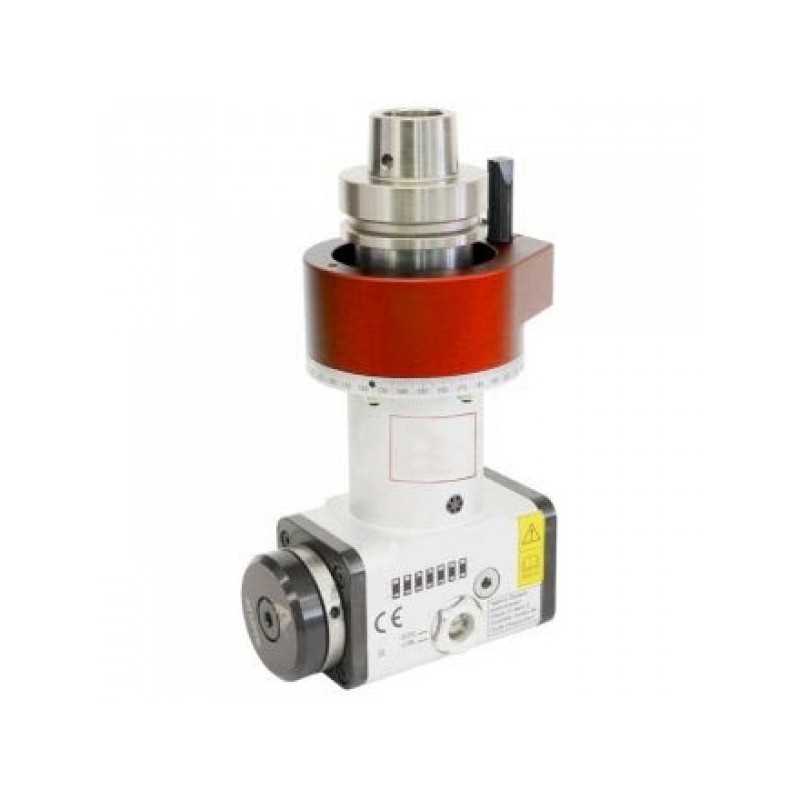

cnc aggregate with one exit - type mono with oil lubrication
GR3.WS.UL

ULTRA LINE: CNC Aggregate with one exit (90°)
OIL BATH LUBRICATED

No compromises! The aggregates of the ULTRA LINE have been designed for extreme applications in continuous operation, for the use with critical material and for highest loads. Ideal for the use with a large Diameter Saw Blade or a Rough Milling Tool. Using the Optimum Motorspindle Torque and the Optimum Saw Blade/Tool Speed.
For Boring, Routing and Sawing.

Technical Data:
- Machine connection per request
- Speed max.: 10,000 R.P.M. (drive)
- Speed max.: 15,000 R.P.M. (tool spindle)
- Gear ratio i= 1:1,5
- Torque max.: 22 Nm
- Temperature max.: 85° C / 185° F
- Tool interfaces: Collet ER 25, collet ER 32, saw blade connection with flange 30 mm and pitch circle 45 mm, alternatively 52 mm
- In conventional design or alternatively available with modular tool clamping system
- Rotating direction left or right
- Spindle rotating direction same as drive rotating direction
- Position of tool spindle 90°
- Aggregate can be rotated 360° around drive.

 For a quotation on a model not present in our Catalog, please specify type of machine and model, type of tool holders, tool used, n° of tool exits, application and material to be processed directly to our Customer Service at info@sistemiklein.com

AVAILABLE ONLY ON REQUEST
