cnc aggregate for the machining of panels from underneath - type sotto function line
GR2.W1.FL

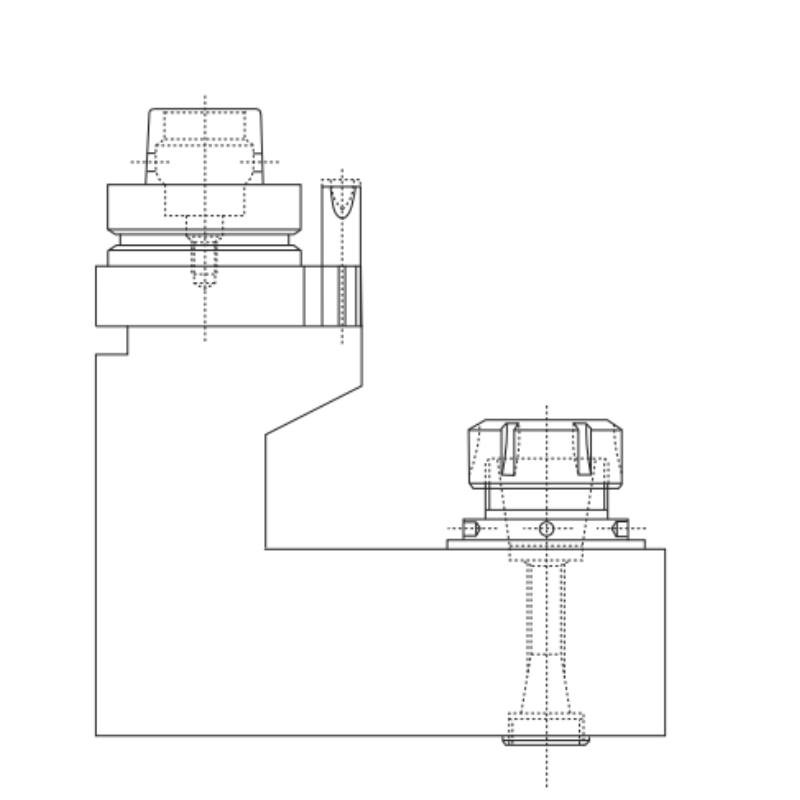

FUNCTION LINE - CNC Aggregate with one exit from underneath
GREASE LUBRICATION

High performance in continuous operation with highest operator ease: these are the fatures of the aggregates of the FUNCTION LINE.

Technical Data:
- Machine connection per request
- Speed max. 15,000 R.P.M. (drive)
- Speed max. 15,000 R.P.M. (tool spindle)
- Gear ratio i 1:1
- Torque max. 15 Nm
- Temperature max. 85° C / 185° F
- Tool interface cylindrical 10 mm
- Rotating direction left or right
- Aggregate can be rotated 4 x 90° around drive
- Cycle operation required!

 For a quotation on a model not present in our Catalog, please specify type of machine and model, type of tool holders, tool used, n° of tool exits, application and material to be processed directly to our Customer Service at info@sistemiklein.com

 AVAILABLE ONLY ON REQUEST
