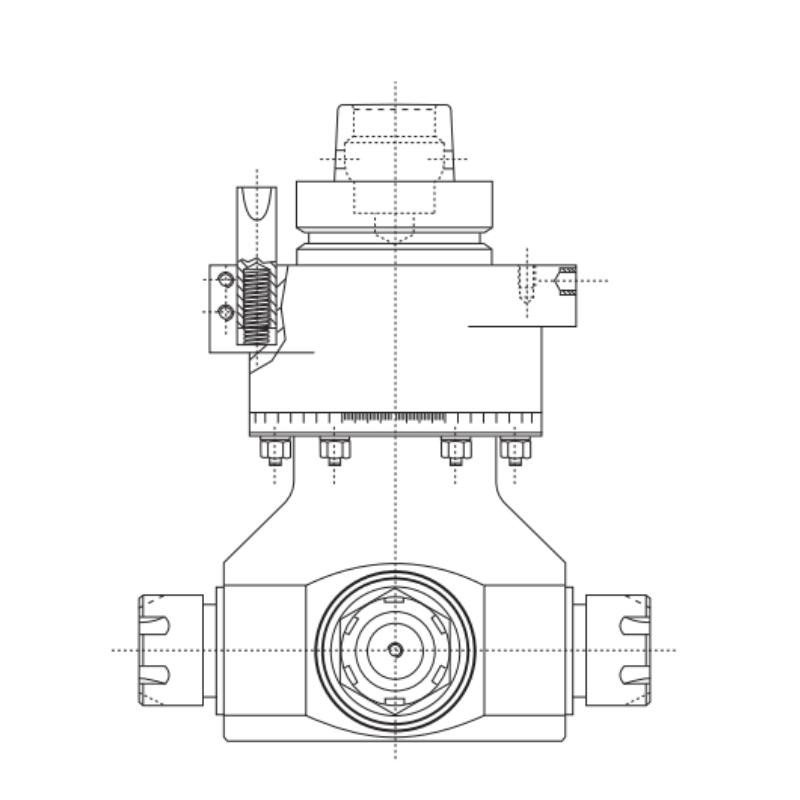

cnc aggregate with four exits - type quattro
GR2.WV.FL

FUNCTION LINE - CNC Aggregate with four exits 90°
GREASE LUBRICATION

High performance in continuous operation with highest operator ease: these are the
fatures of the aggregates of the FUNCTION LINE.
For Boring and Routing


Technical Data:
- Machine connection per request
- Speed max.: 10,000 R.P.M. (drive)
- Speed max.: 15,000 R.P.M. (tool spindle)
- Gear ratio i: 1:1,5
- Torque max.: 20 Nm
- Temperature max.: 85° C
- Tool interfaces: collet ER 25 / ER 32, 2 x boring and 2 x routing
- Rotating direction left or right
- Spindle rotating direction same as drive rotating direction – three tools running same
direction, one tool opposite direction
- Position of tool spindle 90°
- Aggregate can be rotated 360° around drive

 For a quotation on a model not present in our Catalog, please specify type of machine and model, type of tool holders, tool used, n° of tool exits, application and material to be processed directly to our Customer Service at info@sistemiklein.com

AVAILABLE ONLY ON REQUEST
