special devices for angular hinges inserting

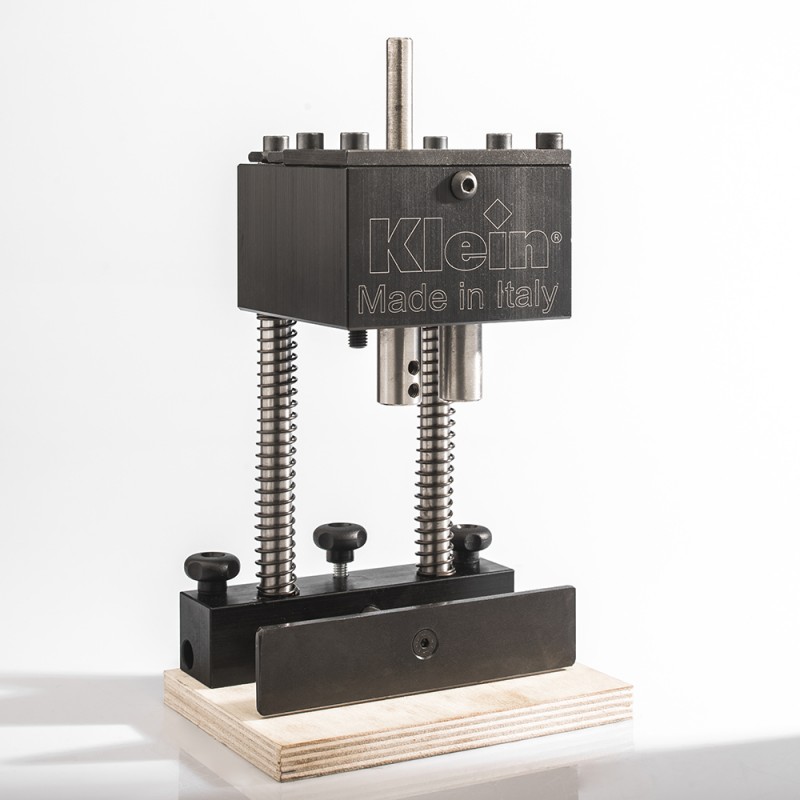

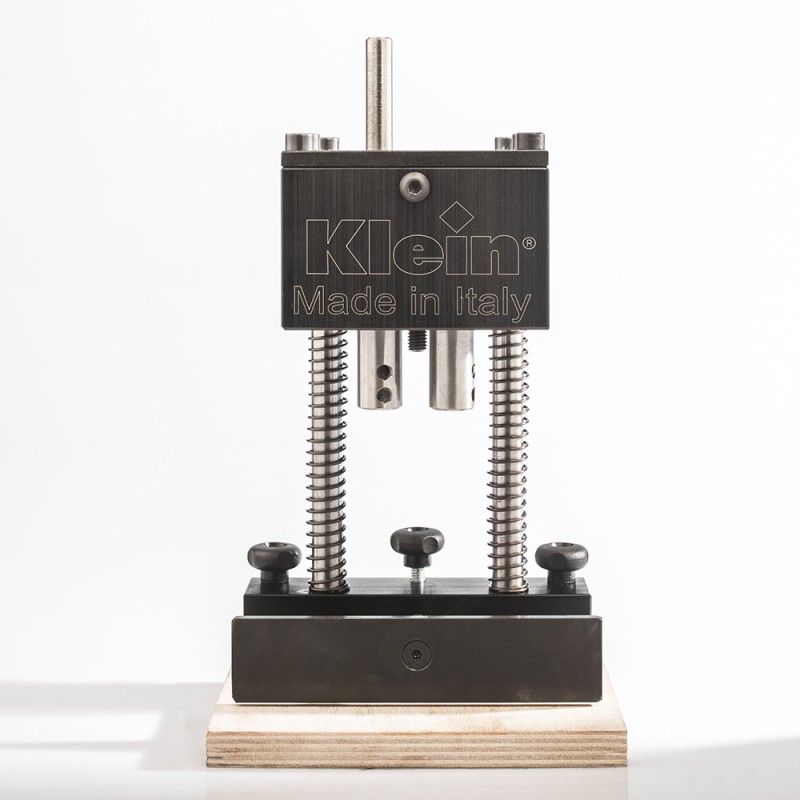

TRIMATIC 22 - 25 - 28

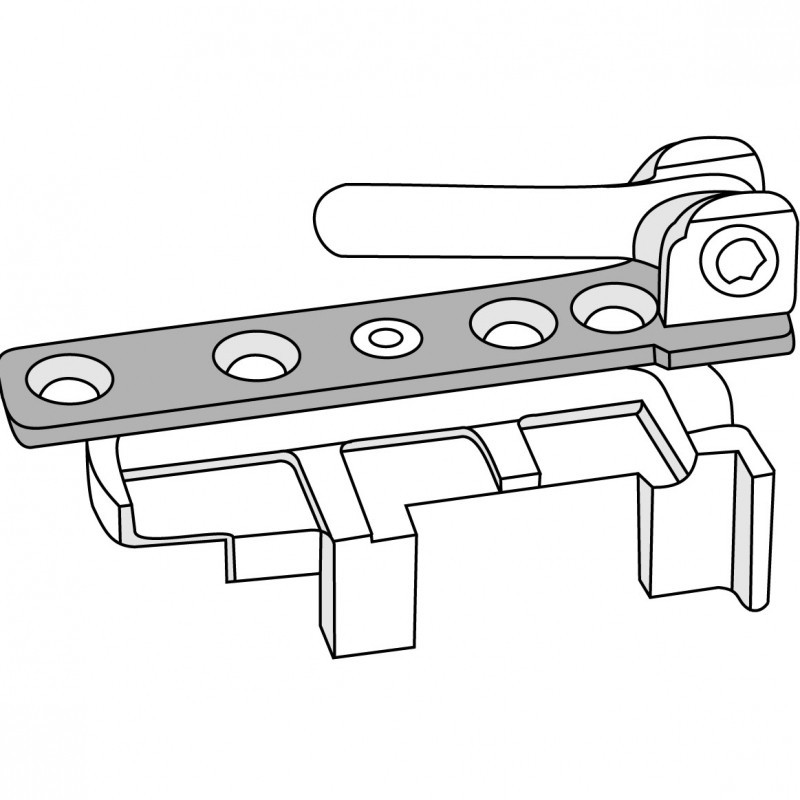

With constant attention paid to our customers’ requirements and ongoing research for developing new technical solutions for helping craftsmen and small firms, our special equipments TRIMATIC 22, 25 e 28 help the window makers to make holes for angular hinges to be mounted on windows and door-windows, in wood and wood-aluminium material.

The TRIMATIC 22, 25 e 28 can be used either with pillar drills or portable electric drills, and have distance between holes suitable for angular hinges of the following types: Siegenia (Trimatic 22), GU (Trimatic 25), Maico and AGB (Trimatic 28).

NB: Boring bits are not included.

Download instruction sheet



Download here the "Trimatics' Brochure"

icona Plywood

Plywood

icona Softwood

Softwood

icona Hardwood

Hardwood

icona Laminate / double side laminate

Laminate / double side laminate

icona Chipboard

Chipboard

icona Drill press

Drill press

icona Portable drill

Portable drill

Description
Note
View Catalog Download PDF

If you are interested in this product:

CONTACT US
Item Description S D L Rotation Note Price Quantity
L160.300.R
Details
- 10X26 30 57 RH - To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
L160.300.L
Details
- 10X26 30 57 LH - To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
L160.340.R
Details
- 10X26 34 57 RH - To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
L160.340.L
Details
- 10X26 34 57 LH - To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
TRIMATIC 22
Details
Drilling jig for angular hinges - - - - For angular hinges "Siegenia" ( ø30/34) with a distance between holes of 22 mm To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
TRIMATIC 25
Details
Drilling jig for angular hinges - - - - For angular hinges "GU" with a distance between holes of 25 mm To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
TRIMATIC 28
Details
Drilling jig for angular hinges - - - - For angular hinges MAICO (type "Trend") and AGB with a distance between holes of 28 mm To see the price
Only logged-in customers are allowed to view the quantity and add the product to the cart
