hw hinge boring bits z2+2

Watch the 360° video

hw hinge boring bits z2+2
L150 - L151

Centerpoint H=0,5 mm for thin boards (16 mm) to make deep holes closer to the bottom of the panel without any sign!
Chip-free hardware hinge holes on every kind of material.
For natural and pressed woods, chipboards, veneered and laminate coated panelsand MDF.
Made with two wings, two spurs for best chip removal, fast and clean boring.
On request it is possible to have the special screw for the Weeke Machines (Art. Z051.505.R).
Shank design with adjusting screw included.

MDF / HDF

Plywood

Softwood

Hardwood

Laminate / double side laminate

Chipboard

Automatic drilling machines

icona slotted cheese head screws

slotted cheese head screws - Z051.505.R

icona set screws

set screws - Z051.302.R

icona o-ring

o-ring - Z059.001.L

icona o-ring

o-ring - Z059.001.R

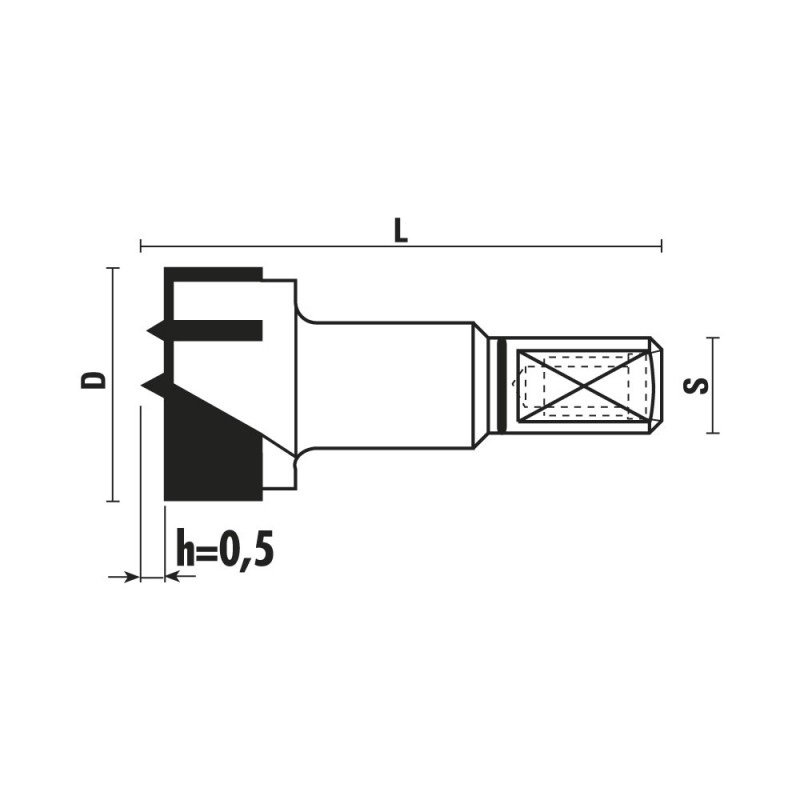

S (shank)

D (diameter)

L (total length)

Rotation

If you are interested in this product:

Item	S	D	L	Rotation	Price	Quantity
L150.150.R Details	10X26	15	56	RH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L150.150.L Details	10X26	15	56	LH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L150.200.R Details	10X26	20	56	RH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L150.200.L Details	10X26	20	56	LH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L150.350.R Details	10X26	35	56	RH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L150.350.L Details	10X26	35	56	LH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L151.150.R Details	10X26	15	70	RH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L151.150.L Details	10X26	15	70	LH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L151.200.R Details	10X26	20	70	RH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L151.200.L Details	10X26	20	70	LH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L151.350.R Details	10X26	35	70	RH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
L151.350.L Details	10X26	35	70	LH	To see the price Log in	Only logged-in customers are allowed to view the quantity and add the product to the cart
